Monitor KDS Data
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|
|
|

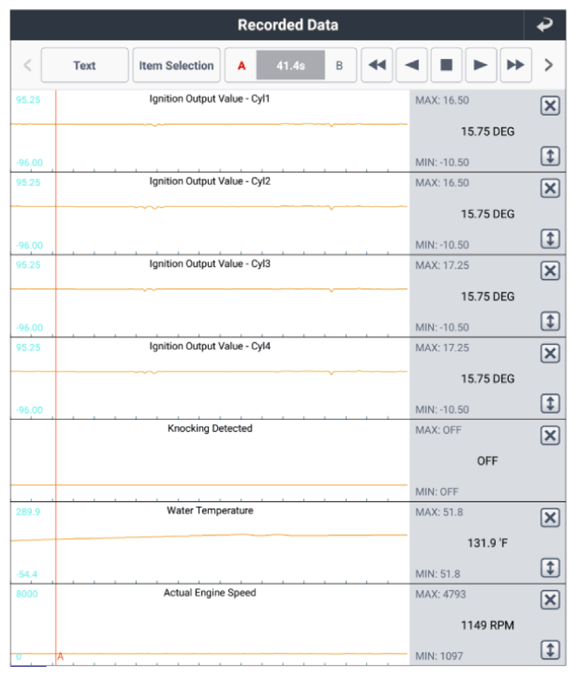

Fig.1 |
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

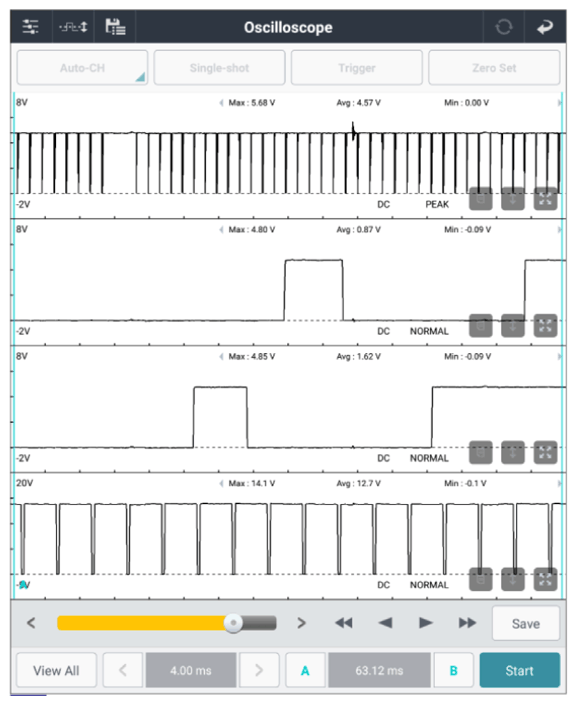

CKPS connector | 3 (signal) | CMPS - In connector | 3 (signal) | Fig.2 |
| CMPS - Ex connector | 3 (signal) | VFS - In connector | 1 (control) | ||
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

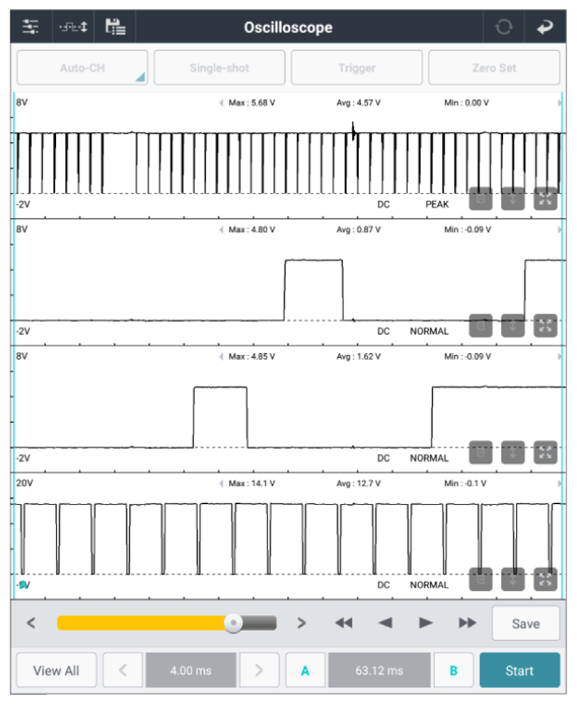

CKPS connector | 3 (signal) | CMPS - In connector | 3 (signal) | Fig.3 |
| CMPS - Ex connector | 3 (signal) | VFS - Ex connector | 1 (control) | ||
Good
- Go to "COMPONENT INSPECTION " procedure.
No Good
- Repair or replace as necessary and then, Go to "Verification Of Repair " procedure.
