Component Inspection: Notes

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Actuation Test" of concerned component with KDS.

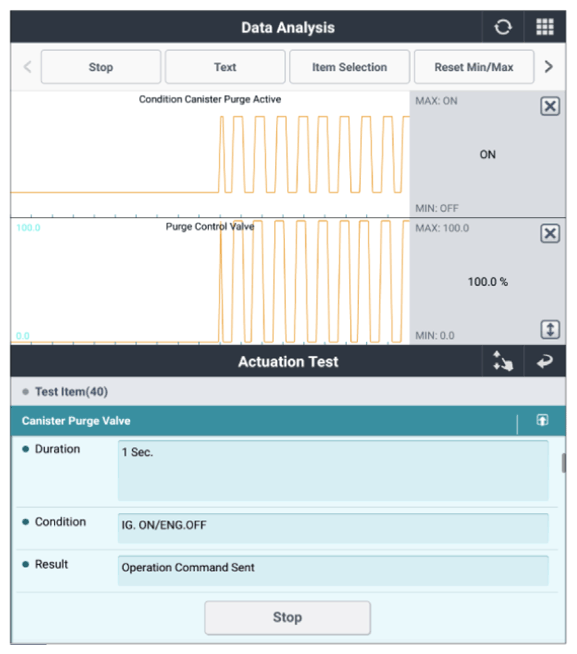

 Fig.1
G14966756Courtesy of KIA MOTORS AMERICA, INC.

Good

• Go to "CCV Inspection" procedure.

No Good

• Carefully re-do this troubleshooting guide steps.

• If no problems were found with the circuits or connectors, replace the PCSV and go to "Verification of Repair" procedure.
