Circuit Inspection
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

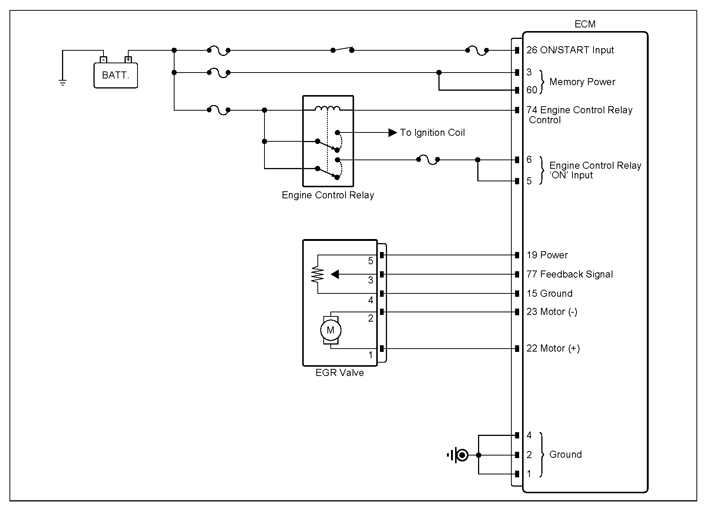

| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
EGR valve connector | 3 (signal) | ECM connector | 77 (signal) | Approx. below 1Ω |
| EGR valve connector | 4 (ground) | Chassis ground | - | Approx. below 1Ω | |
| EGR valve connector | 3 (signal) | Chassis ground | - | ∞ (infinity)Ω | |
|
EGR valve connector | 4 (ground) | Chassis ground | - | Approx. 0V |
| EGR valve connector | 3 (signal) | Chassis ground | - | Approx. 0V | |
| EGR valve connector | 5 (power) | Chassis ground | - | Approx. 5V | |
| EGR valve connector | 2 (-) | Chassis ground | - | Approx. 0V | |
| EGR valve connector | 1 (+) | Chassis ground | - | Approx. 1.8V | |
Good
- Go to "COMPONENT INSPECTION " procedure.
No Good
- Repair or replace as necessary and then, Go to "Verification Of Repair " procedure.
