Circuit Inspection

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

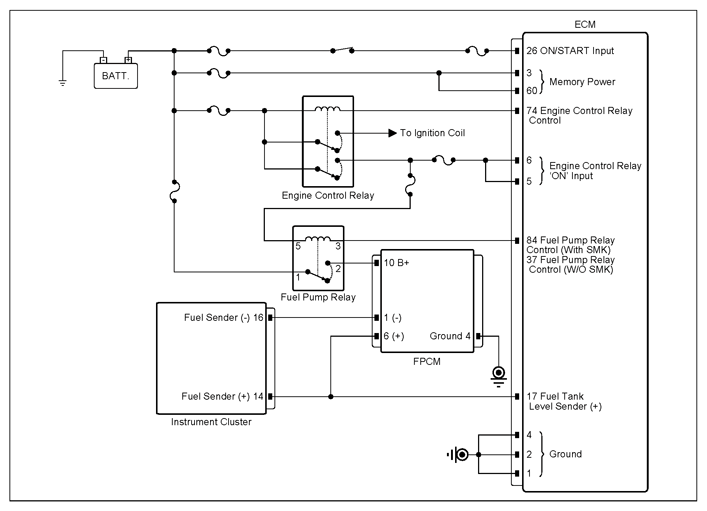

G14966716Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition (+) Probe (-) Probe Specification
Connector Terminal Connector Terminal
  1. Ignition "OFF".
  2. Disconnect the electrical connector(s) from the concerned component.
  3. Ignition "ON".
 FPCM connector 6 (fuel sender +) Chassis ground - Approx. 0V
  1. Ignition "OFF".
  2. Disconnect the electrical connector(s) from the concerned component.
  3. Ignition "ON".
 FPCM connector 1 (fuel sender -) Chassis ground - Approx. 0V
  1. Ignition "OFF".
  2. Disconnect the electrical connector(s) from the concerned component.
 FPCM connector 6 (fuel sender +) ECM connector 17 (fuel sender +) Approx. below 1Ω
FPCM connector 6 (fuel sender +) CLU connector 14 (fuel sender +) Approx. below 1Ω
FPCM connector 1 (fuel sender -) CLU connector 16 (fuel sender -) Approx. below 1Ω

Good

No Good
