System Inspection: Notes
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
| PCSV Inspection | ||
|---|---|---|
| Inspection Condition | Inspection Procedure | Reference |
|
|

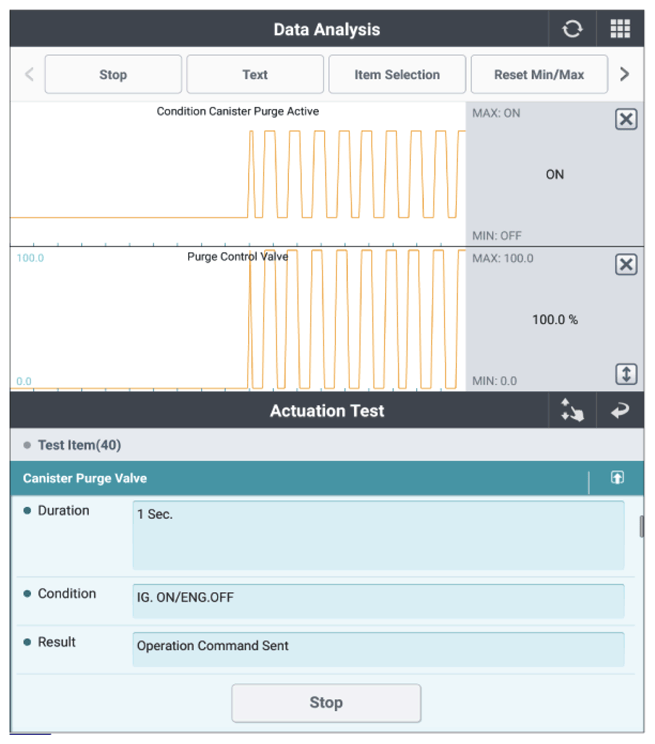

Fig.1 |
Good
- Go to "CCV Inspection" procedure.
No Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the PCSV and Go to "Verification Of Repair " procedure.
| CCV Inspection | ||
|---|---|---|
| Inspection Condition | Inspection Procedure | Reference |
|
|

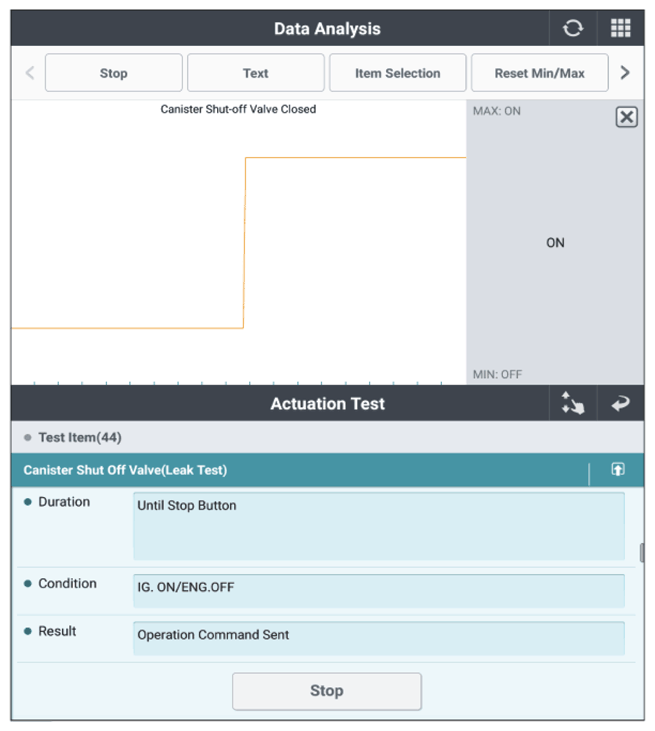

Fig.1 |
Good
- Go to "VISUAL INSPECTION " procedure.
No Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the CCV and Go to "Verification Of Repair " procedure.
