Canister Inspection

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Cracks or leakage on canister.
  2. Loose connection, distortion, or damage of the vapor hose/tube.

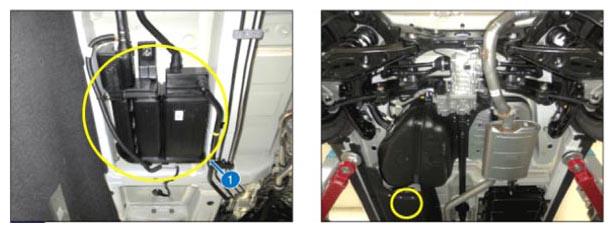

G14966622Courtesy of KIA MOTORS AMERICA, INC.
