Circuit Inspection

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

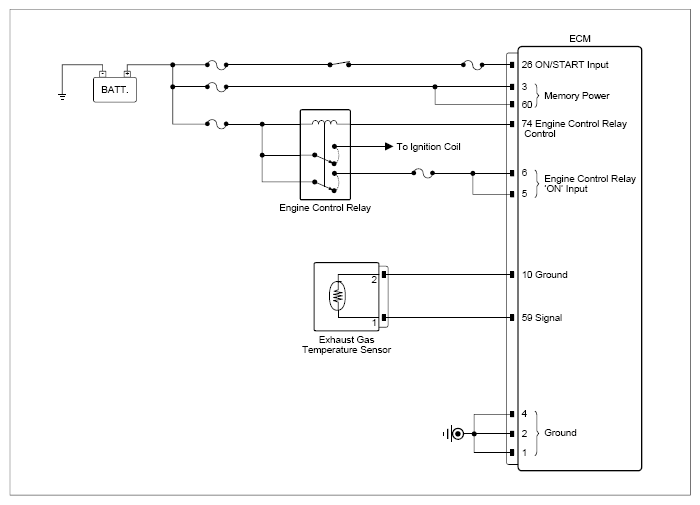

G14969901

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	EGTS connector	1 (signal)	Chassis ground	-	Approx. 5V
	EGTS connector	2 (ground)	Chassis ground	-	Approx. 0V
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component.	EGTS connector	1 (signal)	Chassis ground	-	∞ (infinity)Ω

Good

Go to "Verification Of Repair " procedure.
If no problems were found with the circuits or connectors, replace the EGTS and Go to "Verification Of Repair " procedure.

No Good

Repair or replace as necessary and then, Go to "Verification Of Repair " procedure.
