Component Inspection

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

Inspection Condition	Inspection Procedure	Reference

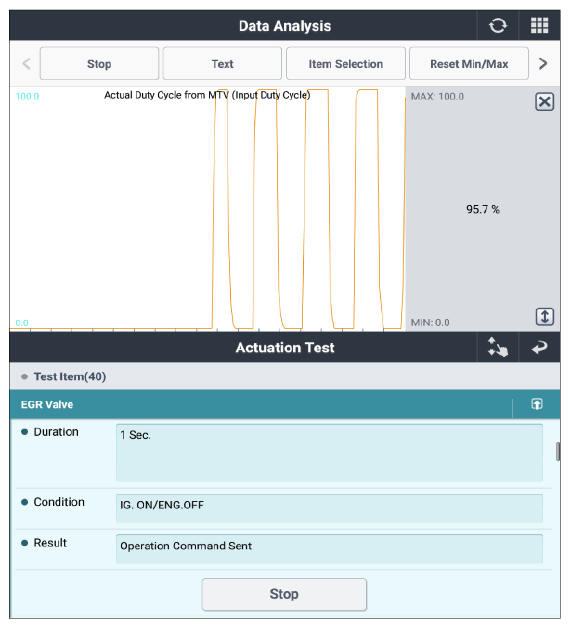

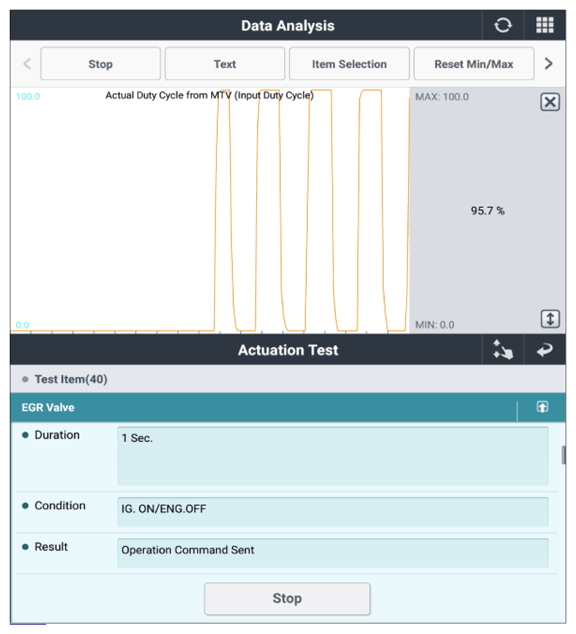

Ignition "ON".	Connect KDS to "Data Link Connector (DLC)". Perform "Actuation Test" of concerned component with KDS.	Fig.1

Courtesy of KIA MOTORS AMERICA, INC.

Good

Go to "Verification Of Repair " procedure.

No Good

Carefully re-do this troubleshooting guide steps.
If no problems were found with the circuits or connectors, replace the EGR valve and Go to "Verification Of Repair " procedure.
