Circuit Inspection
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

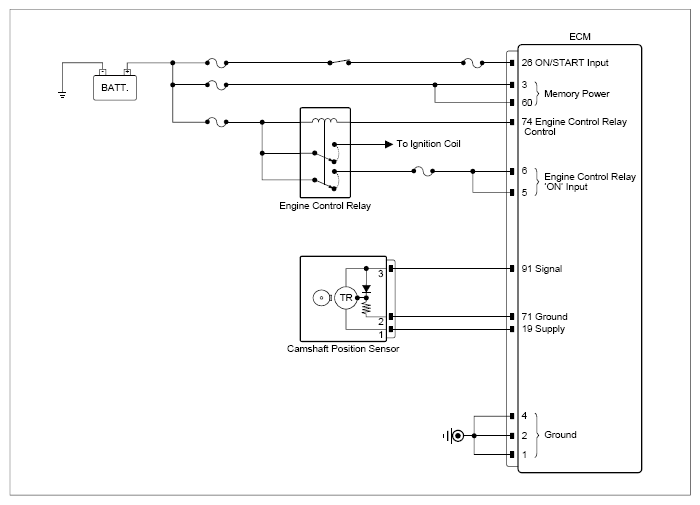

| Crankshaft Position Sensor Circuit Inspection (ISG vehicle) | |||||
|---|---|---|---|---|---|
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
| Connector | Terminal | Connector | Terminal | ||
|
CKPS connector | 1 (power) | Chassis ground | - | Approx. 5V |
| CKPS connector | 3 (signal) | Chassis ground | - | Approx. 4.7V | |
|
CKPS connector | 2 (ground) | Chassis ground | - | Approx. below 1Ω |
|
CKPS connector | 2 (ground) | Chassis ground | - | Approx. below 1Ω |
Good
- Go to "COMPONENT INSPECTION " procedure.
No Good
- Repair or replace as necessary and then, Go to "Verification Of Repair " procedure.
