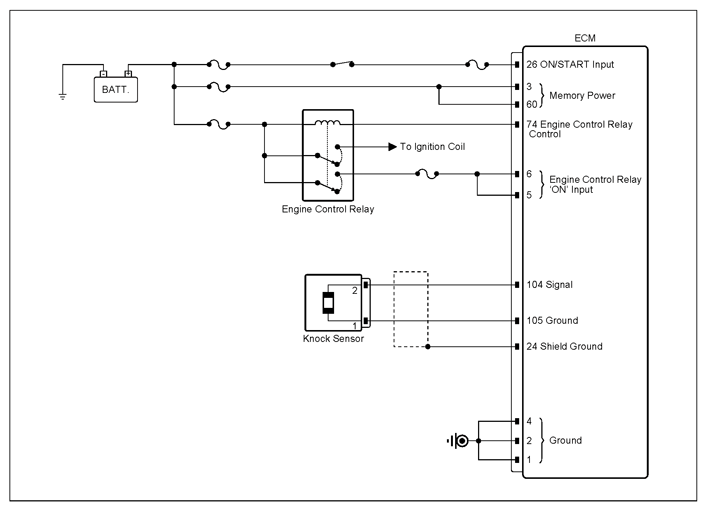

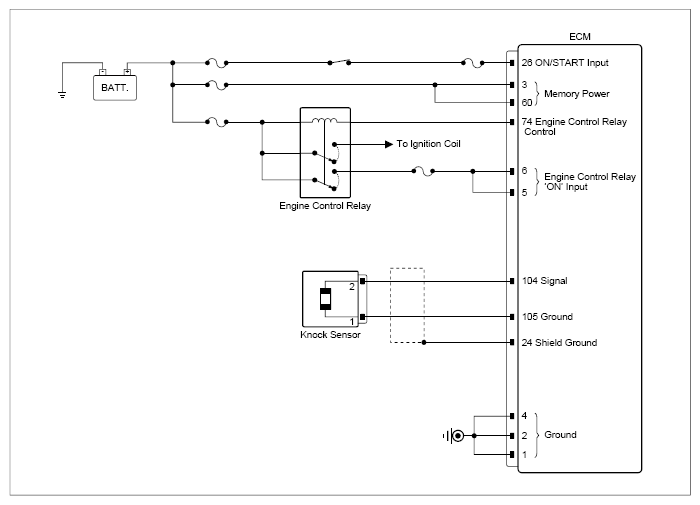

Circuit Inspection
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
Knock sensor #1 connector | 2 (signal) | Chassis ground | - | Approx. 0V |
| Knock sensor #1 connector | 1 (ground) | Chassis ground | - | Approx. 0V | |
|
Knock sensor #1 connector | 2 (signal) | ECM connector | 104 (signal) | Approx. below 1Ω |
| Knock sensor #1 connector | 1 (ground) | ECM connector | 105 (ground) | Approx. below 1Ω | |
| Knock sensor #1 connector | 2 (signal) | Knock sensor #1 connector | 1 (ground) | ∞ (infinity)Ω | |
Good
- Go to "COMPONENT INSPECTION " procedure.
No Good
- Repair or replace as necessary and then, Go to "Verification Of Repair " procedure.
