Inspection Procedure

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

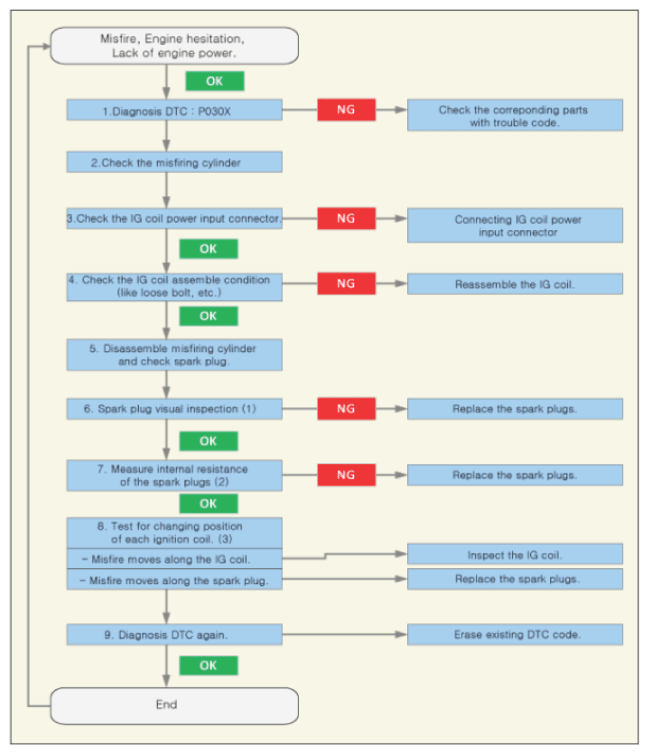

G14969799

Courtesy of KIA MOTORS AMERICA, INC.

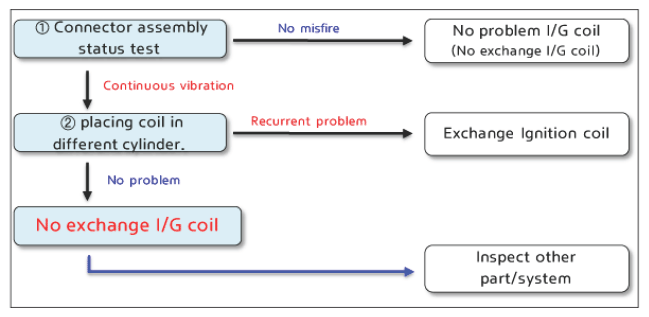

G14969800

Courtesy of KIA MOTORS AMERICA, INC.

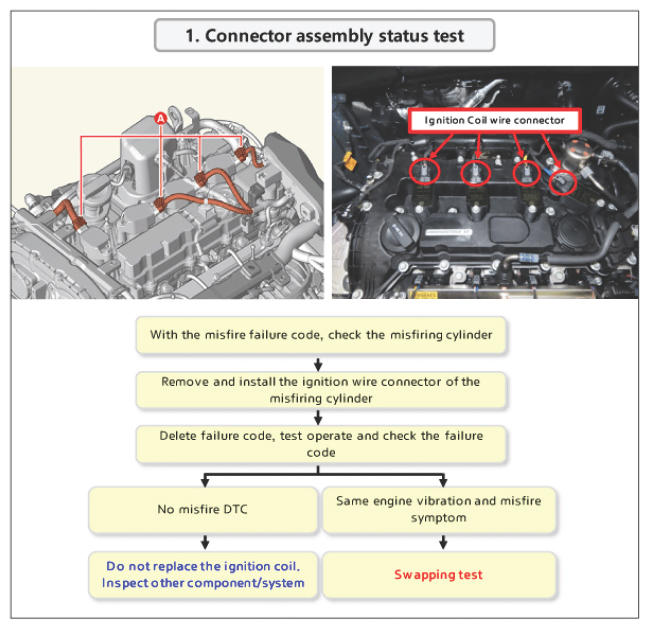

Check the misfire by reassembling the connector (Fig.1 - (1) Connector assembly status test)

Courtesy of KIA MOTORS AMERICA, INC.

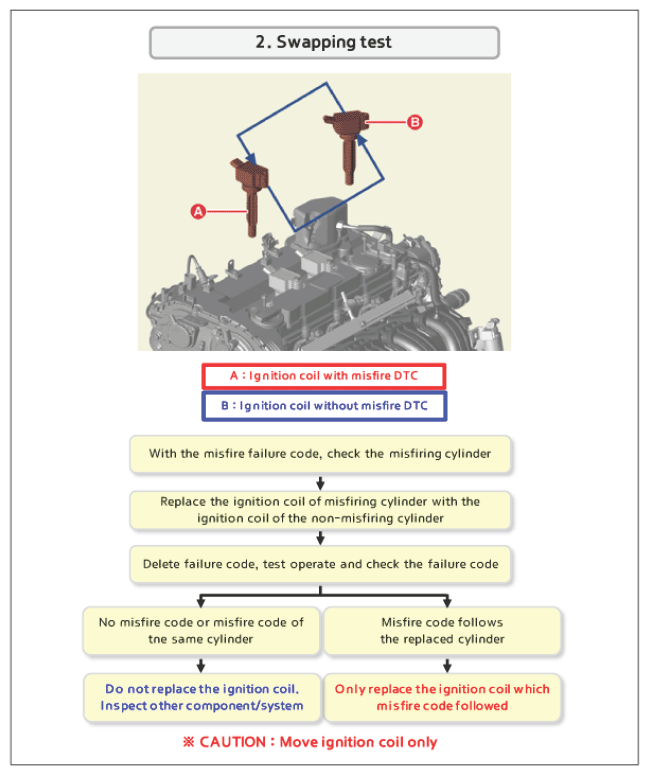

Check the DTC code after placing coil in different cylinder (Fig.1 - (2) Swapping test)

G14969802

Courtesy of KIA MOTORS AMERICA, INC.

Good

Go to "IGNITION COIL OSCILLOSCOPE INSPECTION " procedure.

No Good

Repair as necessary and Go to "Verification Of Repair " procedure.
