Visual Check

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

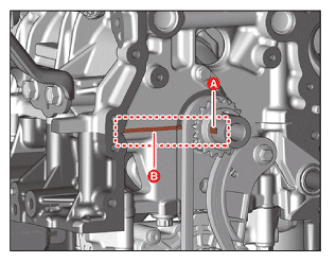

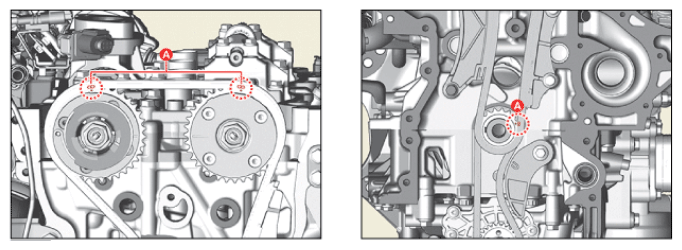

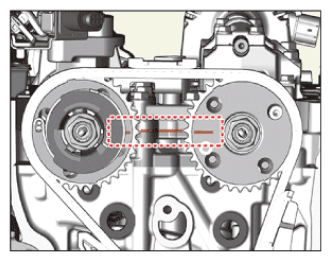

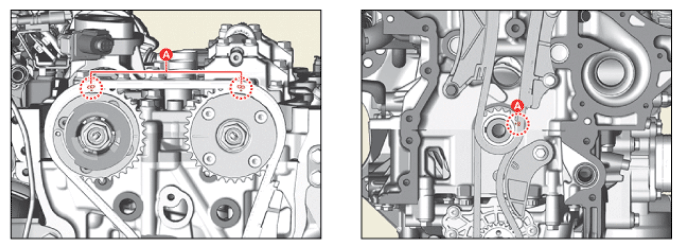

Check Camshaft And Crankshaft Alignment. (Refer to the TIMING SYSTEM (PHEV) .)

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Good

Go to "IGNITION COIL DIAGNOSIS " procedure.

No Good

Repair as necessary and Go to "Verification Of Repair " procedure.
