Injector Oscilloscope Inspection
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | (+) Probe | (-) Probe | Reference | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

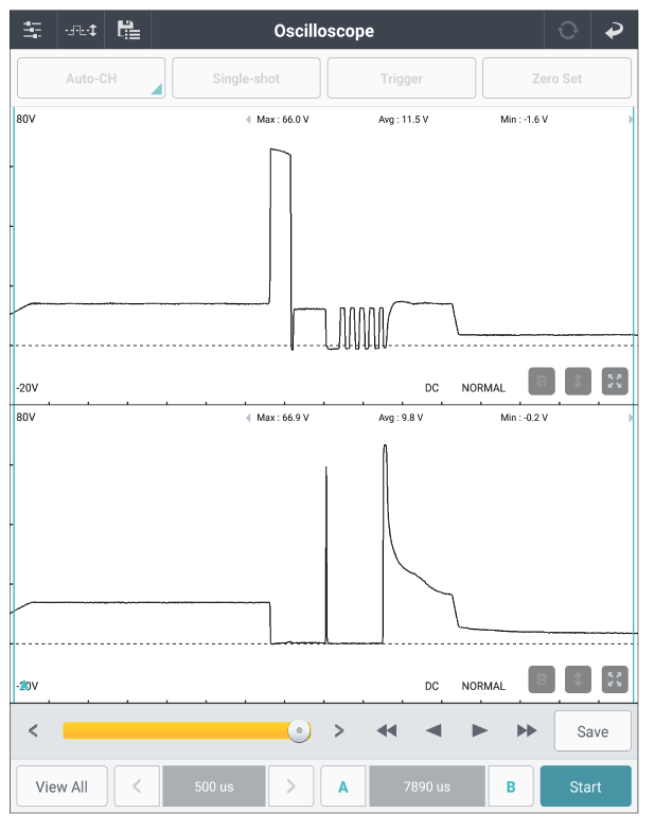

Injector connector | 2 (+) | Chassis ground | - | Fig.1 |
| Injector connector | 1 (-) | Chassis ground | - | ||
Good
- Go to "INJECTOR DISABLE ACTUATION TEST " procedure.
No Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the injector and Go to "Verification Of Repair " procedure.
