Inspection Procedure
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of KIA MOTORS AMERICA, INC.
|

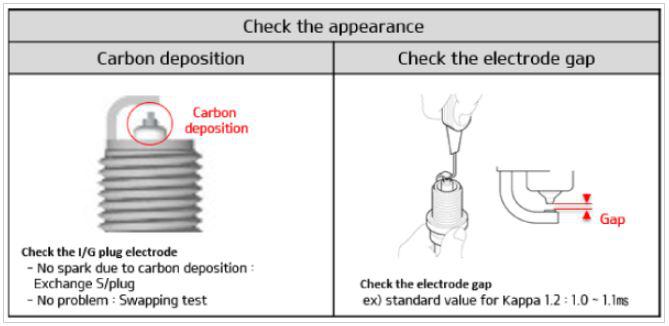

1.Check the appearance
 Courtesy of KIA MOTORS AMERICA, INC.
|

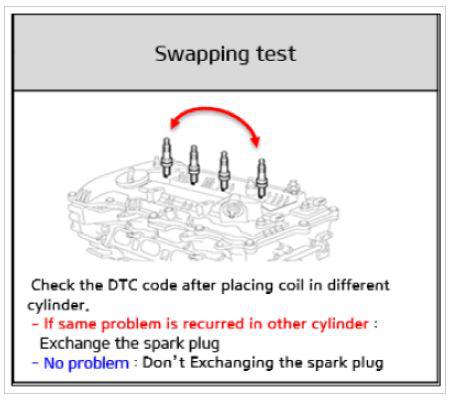

2.Swapping test
 Courtesy of KIA MOTORS AMERICA, INC.
|
| Good |
Go to "Ignition Coil Diagnosis" procedure. |
| No Good |
Repair as necessary and go to "Verification of Repair" procedure. |
