Ignition Coil Actuation Test

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

Inspection Condition	Inspection Procedure	Reference

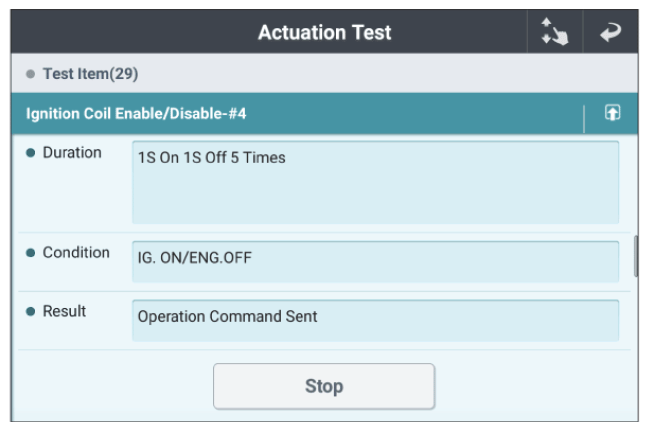

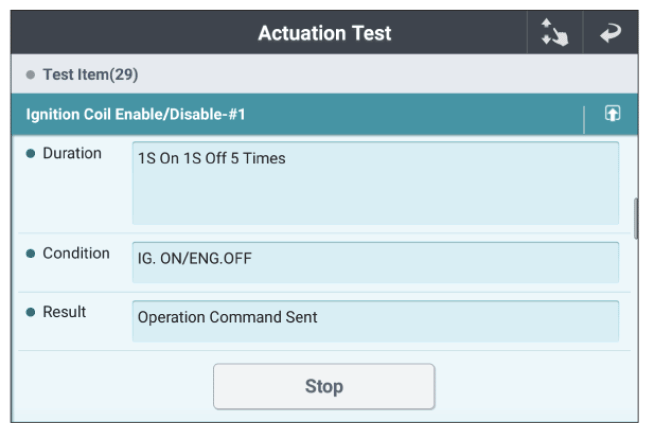

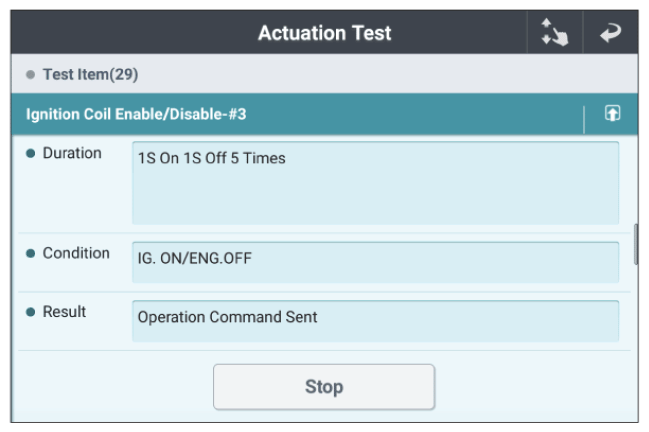

Ignition "ON".	Connect KDS to "Data Link Connector (DLC)". Remove the ignition plug. Connect the spark plug to the ignition coil. Perform "Actuation Test" of concerned component with KDS. Check ignition status of spark plugs for each cylinder.	Fig.1 to 4

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Good

Go to "FUEL LINE INSPECTION " procedure.

No Good

Carefully re-do this troubleshooting guide steps.
If no problems were found with the circuits or connectors, replace the ignition coil or plug and Go to "Verification Of Repair " procedure.
