Component Inspection
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|
|
|

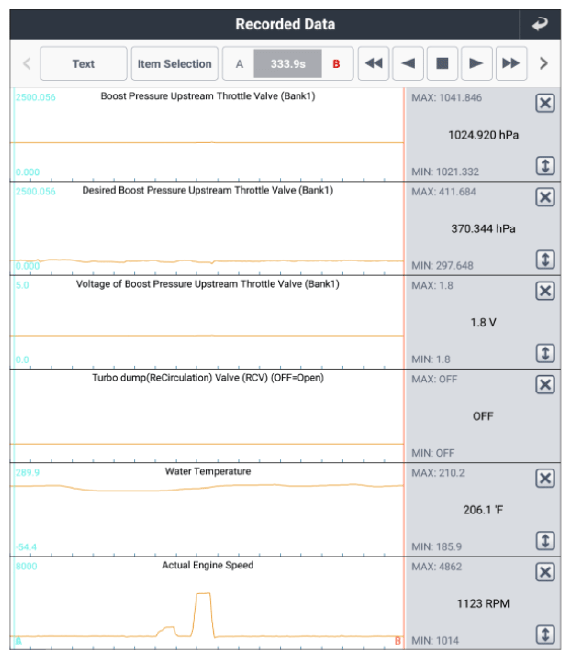

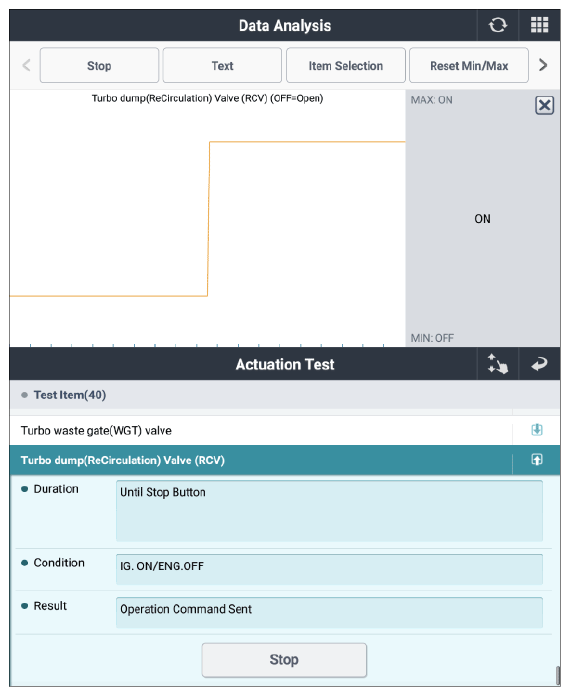

Fig.1 |
Good
- Go to "Verification Of Repair " procedure.
No Good
- Go to "Inspect RCV Control Solenoid Valve" procedure.
| Inspect RCV Control Solenoid Valve | |||||
|---|---|---|---|---|---|
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
| Connector | Terminal | Connector | Terminal | ||
|
RCV control solenoid valve (component side) | 2 (power) | RCV control solenoid valve (component side) | 1 (control) | Approx. 9.1Ω at 20° C (68°F) |
Good
- Go to "Inspect BPS" procedure.
No Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the RCV solenoid and Go to "Verification Of Repair " procedure.
| Inspect BPS | ||
|---|---|---|
| Inspection Condition | Inspection Procedure | Reference |
|
|
Fig.1 |
Good
- Go to "Check EWGA performance" procedure.
No Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the BPS and Go to "Verification Of Repair " procedure.
| Check EWGA performance | ||
|---|---|---|
| Inspection Condition | Inspection Procedure | Reference |
|
|

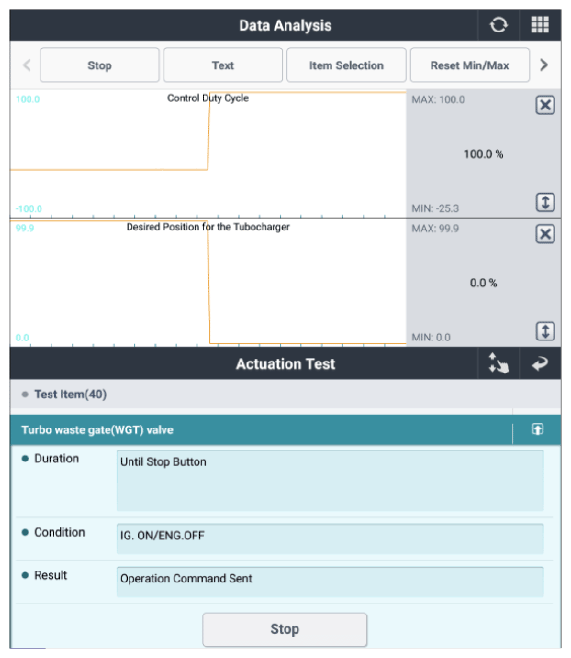

Fig.1 |
Good
- Go to "Verification Of Repair " procedure.
No Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the EWGA and Go to "Verification Of Repair " procedure.
