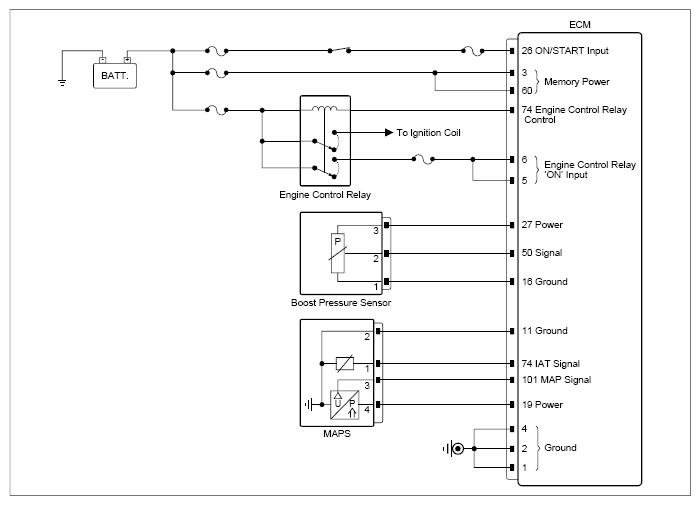

Circuit Inspection
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
BPS connector | 3 (power) | Chassis ground | - | Approx. 4.9V |
| BPS connector | 2 (signal) | Chassis ground | - | Approx. 0V | |
|
BPS connector | 2 (signal) | Chassis ground | - | ∞ (infinity)Ω |
| BPS connector | 2 (signal) | ECM connector | 50 (signal) | Approx. below 1Ω | |
|
BPS connector | 1 (ground) | Chassis ground | - | Approx. below 1Ω |
|
MAPS connector | 4 (power) | Chassis ground | - | Approx. 5V |
| MAPS connector | 3 (signal) | Chassis ground | - | Approx. 0V | |
|
MAPS connector | 3 (signal) | ECM connector | 101 (signal) | Approx. below 1Ω |
| MAPS connector | 3 (signal) | Chassis ground | - | ∞ (infinity)Ω | |
|
MAPS connector | 2 (ground) | Chassis ground | - | Approx. below 1Ω |
|
ECM connector | 3, 60 (Memory power) | Chassis ground | - | B+ |
| ECM connector | 26 (ON/START Input) | Chassis ground | - | B+ | |
|
ECM connector | 1, 2, 4 (ground) | Chassis ground | - | Approx. below 1Ω |
Good
- Go to "COMPONENT INSPECTION " procedure.
No Good
- Repair or replace as necessary and then, Go to "Verification Of Repair " procedure.
