Circuit Inspection
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

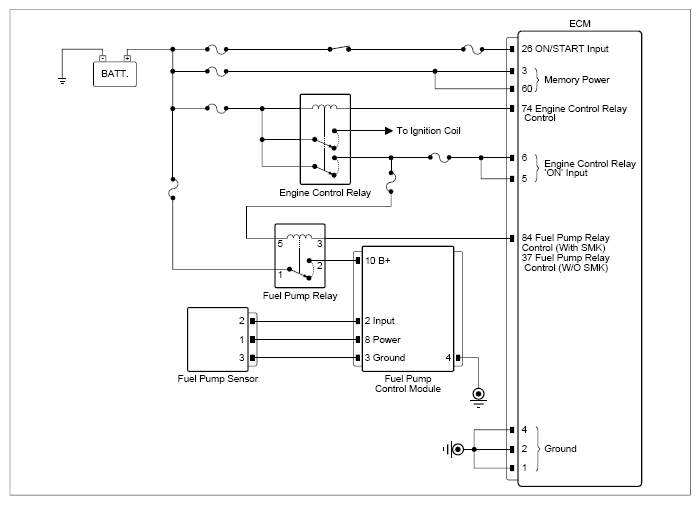

Fuel pump relay connector | 1 (relay power) | Chassis ground | - | B+ |
| Fuel pump relay connector | 5 (coil power) | Chassis ground | - | B+ | |
| Fuel pump relay connector | 3 (coil control) | Chassis ground | - | Approx. 3.5V | |
| Fuel pump relay connector | 2 (fuel pump relay "ON" input) | Chassis ground | - | Approx. 0V | |
Good
- Go to "COMPONENT INSPECTION " procedure.
No Good
- Repair or replace as necessary and then, Go to "Verification Of Repair " procedure.
