Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.

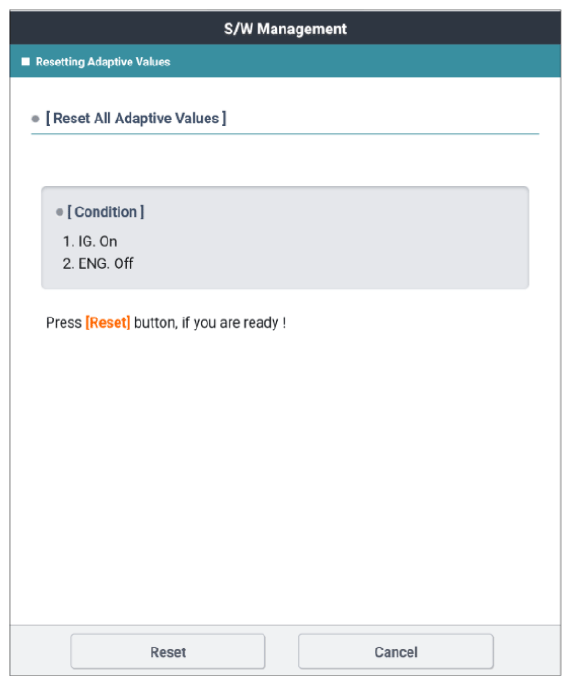

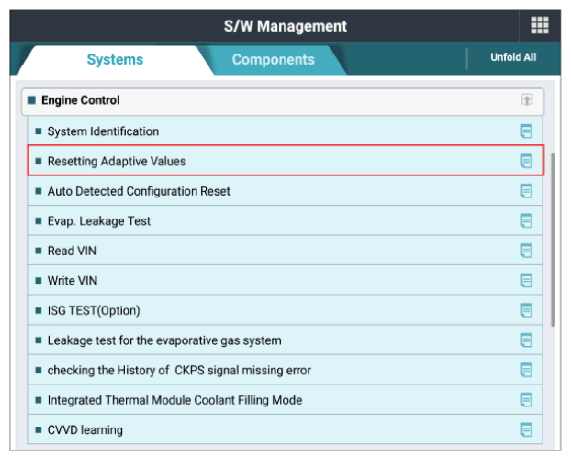

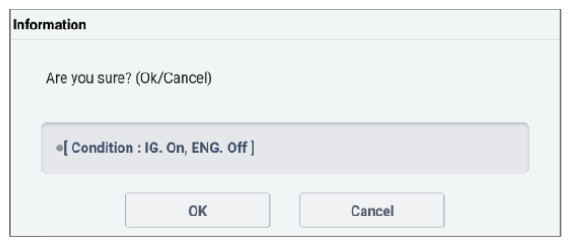

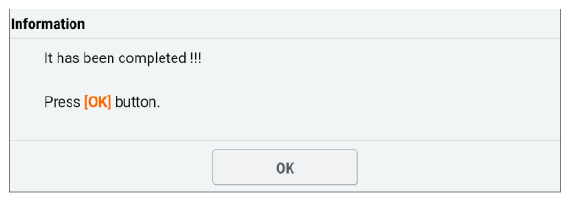

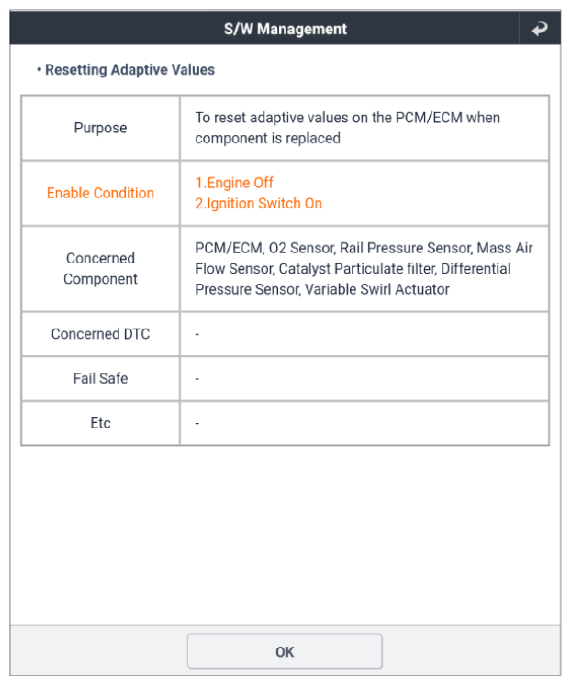

 Fig.1 to 5
G14969605Courtesy of KIA MOTORS AMERICA, INC.
G14969606Courtesy of KIA MOTORS AMERICA, INC.
G14969607Courtesy of KIA MOTORS AMERICA, INC.
G14969608Courtesy of KIA MOTORS AMERICA, INC.
G14969609Courtesy of KIA MOTORS AMERICA, INC.
