Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.

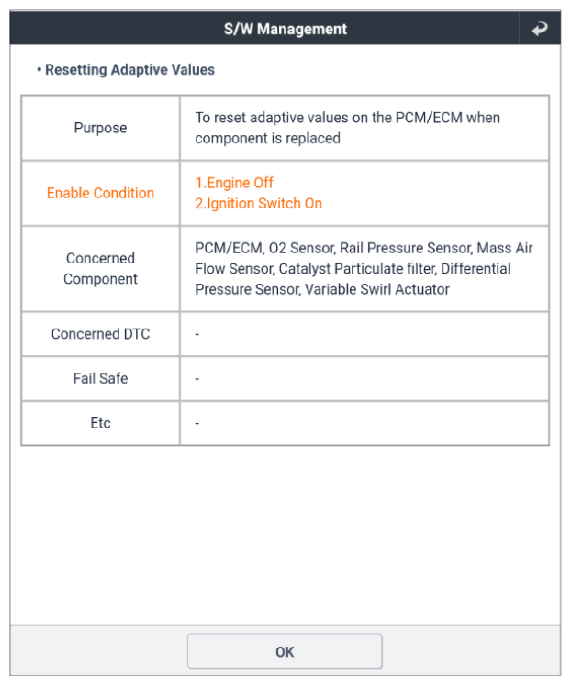

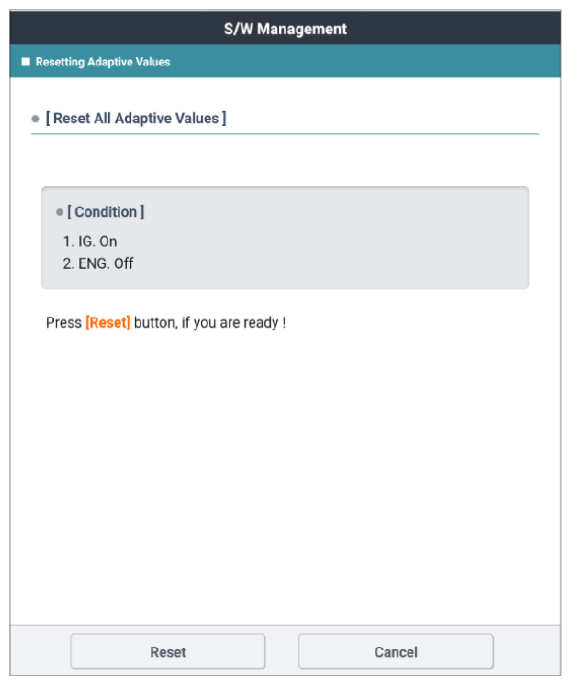

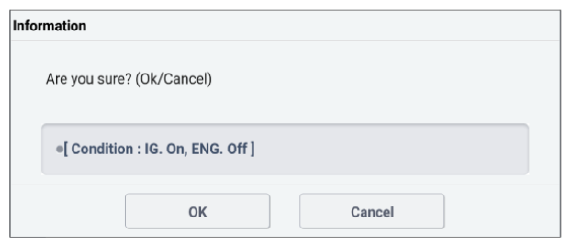

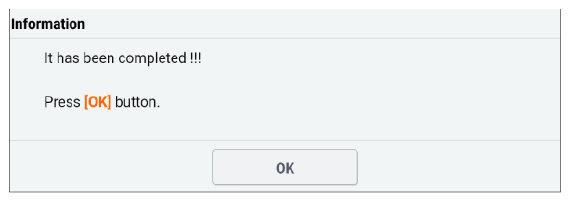

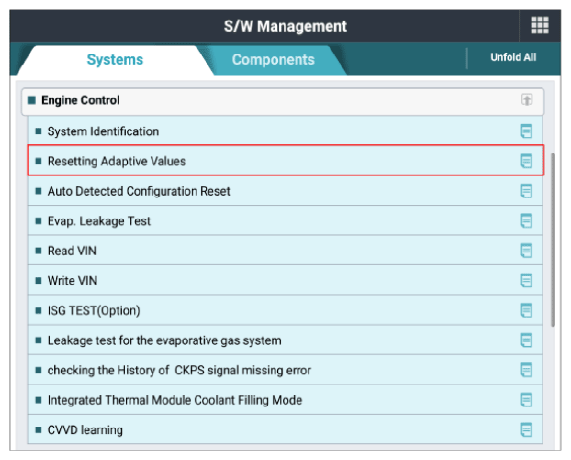

 Fig.1 to 5
G14969585Courtesy of KIA MOTORS AMERICA, INC.
G14969586Courtesy of KIA MOTORS AMERICA, INC.
G14969587Courtesy of KIA MOTORS AMERICA, INC.
G14969588Courtesy of KIA MOTORS AMERICA, INC.
G14969589Courtesy of KIA MOTORS AMERICA, INC.
