Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 5

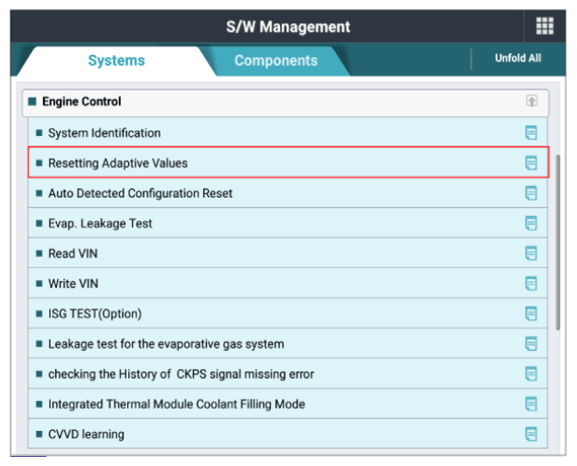

G14960615Courtesy of KIA MOTORS AMERICA, INC.

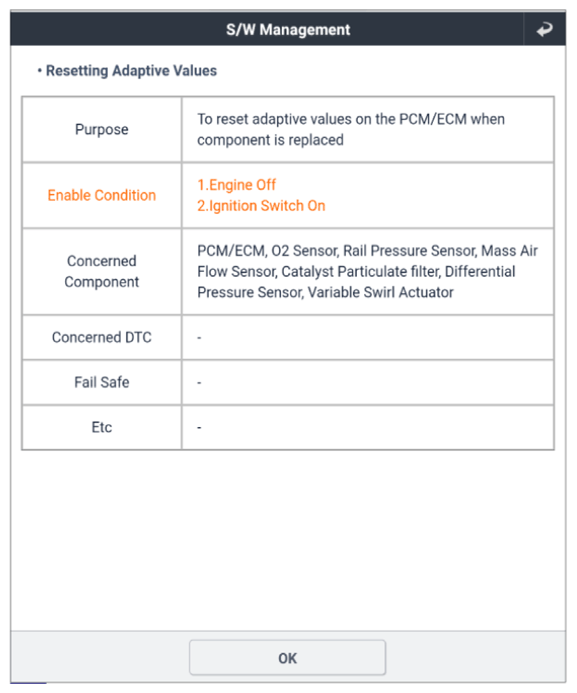

G14960616Courtesy of KIA MOTORS AMERICA, INC.

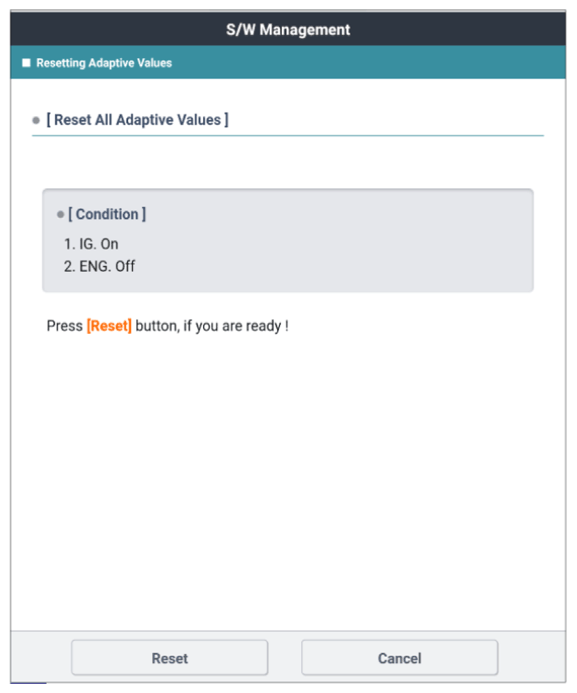

G14960617Courtesy of KIA MOTORS AMERICA, INC.

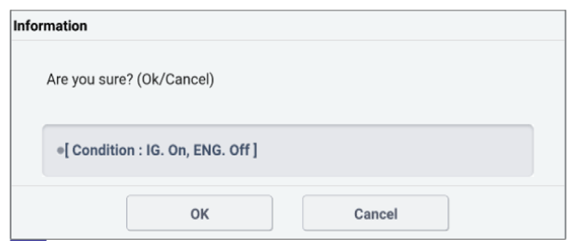

G14960618Courtesy of KIA MOTORS AMERICA, INC.

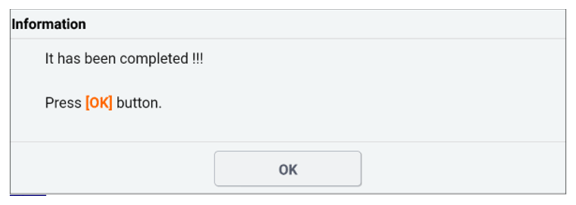

G14960619Courtesy of KIA MOTORS AMERICA, INC.
