Circuit Inspection

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

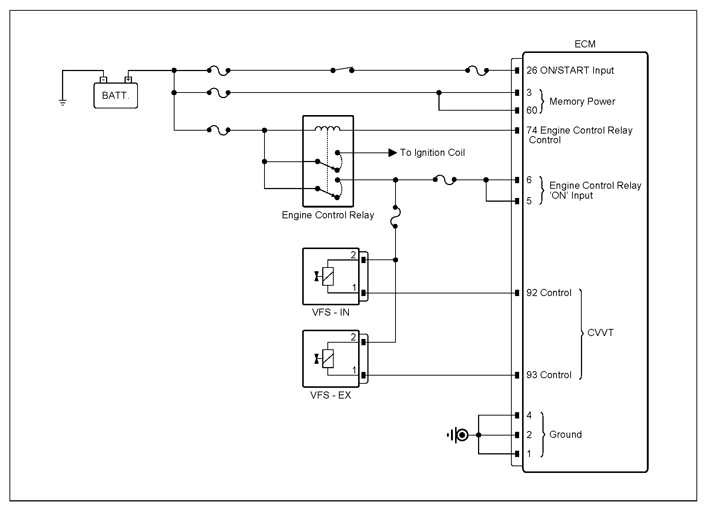

G14960431Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition (+) Probe (-) Probe Specification
Connector Terminal Connector Terminal
  1. Ignition "OFF".
  2. Disconnect the electrical connector(s) from the concerned component.
  3. Ignition "ON".
 VFS - Ex connector 2 (power) Chassis ground - B+
VFS - Ex connector 1 (control) Chassis ground - Approx. 3.5V (duty)
  1. Ignition "OFF".
  2. Disconnect auxiliary battery (-) cable.
  3. Disconnect the electrical connector(s) from the concerned component.
 VFS - Ex connector 2 (power) Chassis ground - ∞ (infinity)Ω
VFS - Ex connector 1 (control) Chassis ground - ∞ (infinity)Ω

Good

No Good
