Circuit Inspection
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

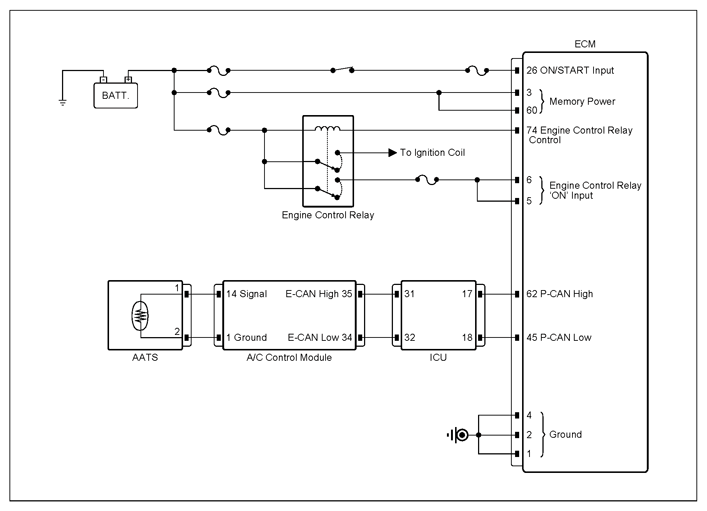

| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
AATS connector | 1 (signal) | Chassis ground | - | Approx. 5V |
|
AATS connector | 2 (ground) | Chassis ground | - | Approx. below 1Ω |
|
A/C control module connector (component side) | 35 (E-CAN high) | A/C control module connector (component side) | 34 (E-CAN low) | Approx. 120Ω |
| ICU (component side) | 31 (E-CAN high) | ICU (component side) | 32 (E-CAN low) | Approx. 120Ω | |
| ECM (component side) | 62 (P-CAN high) | ECM (component side) | 45 (P-CAN low) | Approx. 120Ω | |
| ICU (component side) | 17 (P-CAN high) | ICU (component side) | 18 (P-CAN low) | Approx. 120Ω | |
|
A/C control module connector | 35 (E-CAN high) | Chassis ground | - | Fig.1 |
| A/C control module connector | 34 (E-CAN low) | Chassis ground | - | ||
Good
- Go to "COMPONENT INSPECTION " procedure.
No Good
- Repair or replace as necessary and then, Go to "Verification Of Repair " procedure.
