Component Inspection
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|
|
|

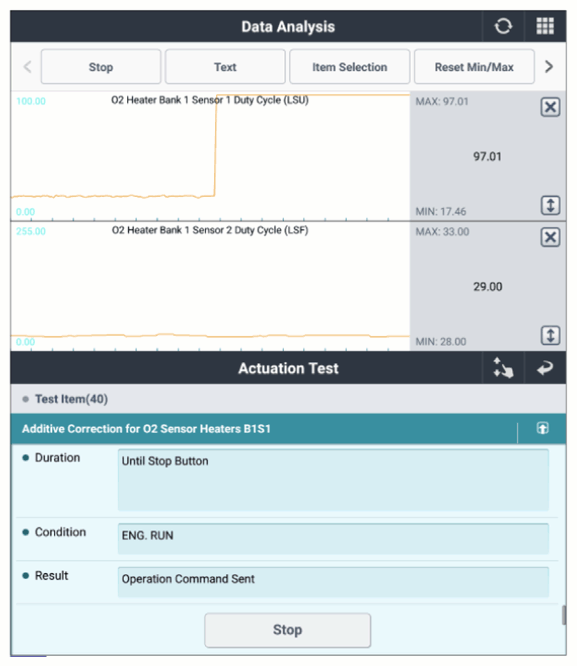

Fig.1 |
Good
- Go to "Verification Of Repair " procedure.
No Good
- Go to "Inspect HO2S (Bank1, Sensor1) heater" procedure.
| HO2S (Bank1, Sensor1) Heater Inspection | |||||
|---|---|---|---|---|---|
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
| Connector | Terminal | Connector | Terminal | ||
|
HO2S (Bank1, Sensor1) (component side) | 2 (power) | HO2S (Bank1, Sensor1) (component side) | 5 (heater) | Approx. 2.5Ω at 20°C (68°F) |
Good
- Go to "Verification Of Repair " procedure.
No Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the HO2S (Bank1, Sensor1) and Go to "Verification Of Repair " procedure.
