Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON"
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
  3. Select "Clear Learning Value" in "Vehicle S/W management".
  4. After operation, perform the "Verification Of Repair " procedure.
 Fig.1 to 4

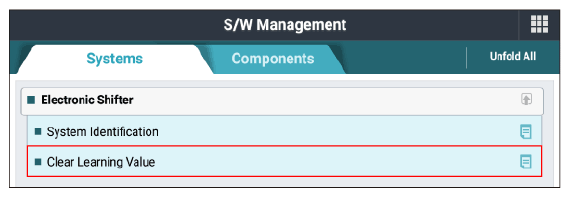

G14964251Courtesy of KIA MOTORS AMERICA, INC.

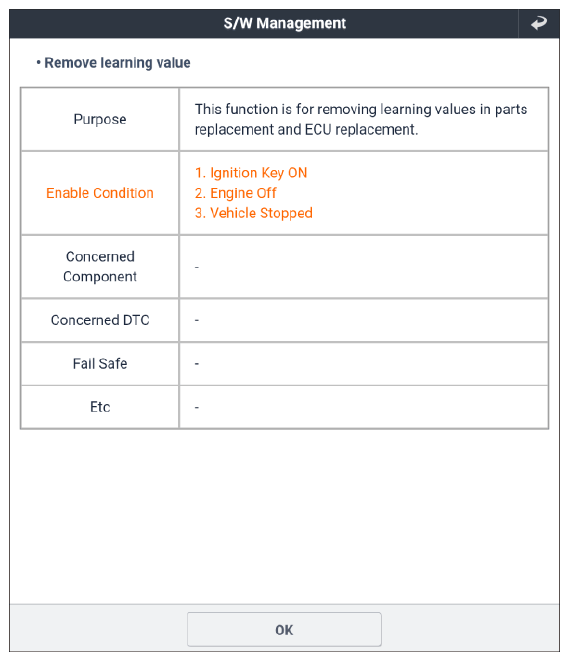

G14964252Courtesy of KIA MOTORS AMERICA, INC.

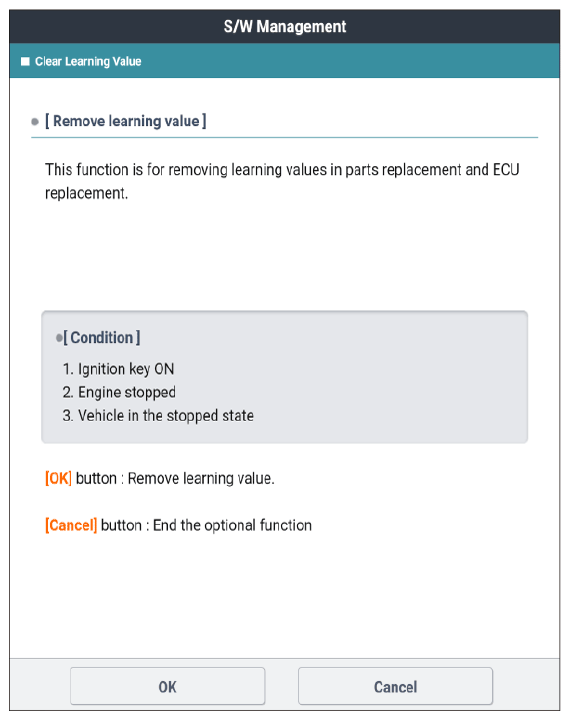

G14964253Courtesy of KIA MOTORS AMERICA, INC.

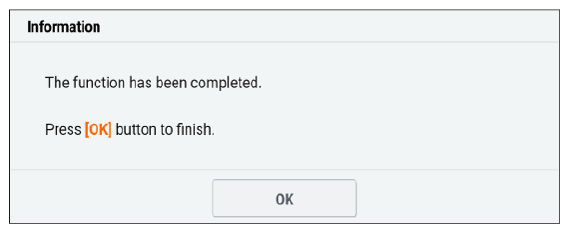

G14964254Courtesy of KIA MOTORS AMERICA, INC.
