Circuit Inspection

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

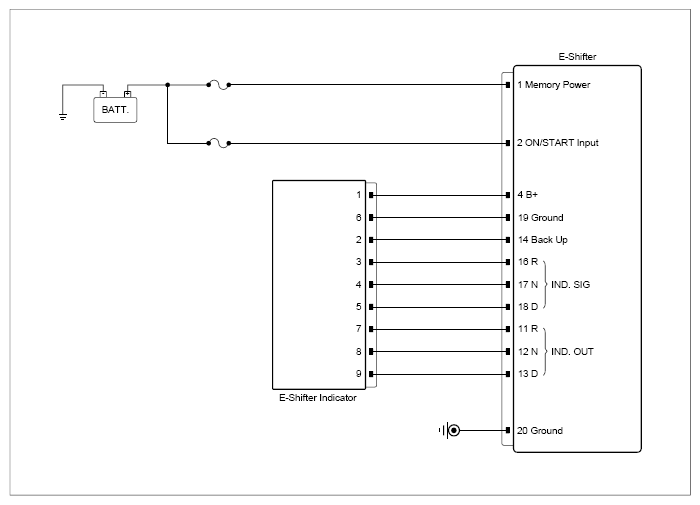

G14964250

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	E-Shifter Indicator connector	1 (Memory power)	Chassis ground	-	Approx. 11.4V
	E-Shifter Indicator connector	2 (IND_PWM)	Chassis ground	-	Approx. 11.4V
	E-Shifter Indicator connector	3 (IND. SIG "R")	Chassis ground	-	Approx. 0V
	E-Shifter Indicator connector	4 (IND. SIG "N")	Chassis ground	-	Approx. 0V
	E-Shifter Indicator connector	5 (IND. SIG "D")	Chassis ground	-	Approx. 0V
	E-Shifter Indicator connector	7 (IND. OUT "R")	Chassis ground	-	Approx. 0V
	E-Shifter Indicator connector	8 (IND. OUT "N")	Chassis ground	-	Approx. 0V
	E-Shifter Indicator connector	9 (IND. OUT "D")	Chassis ground	-	Approx. 0V
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component.	E-Shifter Indicator connector	20 (ground)	Chassis ground	-	Approx. below 1Ω
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component.	E-Shifter Indicator connector	3 (IND. SIG "R")	E-Shifter ECU connector	16 (IND. SIG "R")	Approx. below 1Ω
	E-Shifter Indicator connector	4 (IND. SIG "N")	E-Shifter ECU connector	17 (IND. SIG "N")	Approx. below 1Ω
	E-Shifter Indicator connector	5 (IND. SIG "D")	E-Shifter ECU connector	18 (IND. SIG "D")	Approx. below 1Ω
	E-Shifter Indicator connector	7 (IND. OUT "R")	E-Shifter ECU connector	11 (IND. OUT "R")	Approx. below 1Ω
	E-Shifter Indicator connector	8 (IND. OUT "N")	E-Shifter ECU connector	12 (IND. OUT "N")	Approx. below 1Ω
	E-Shifter Indicator connector	9 (IND. OUT "D")	E-Shifter ECU connector	13 (IND. OUT "D")	Approx. below 1Ω
	E-Shifter Indicator connector	2 (back up)	E-Shifter ECU connector	14 (back up)	Approx. below 1Ω
	E-Shifter Indicator connector	2 (back up)	Chassis ground	-	∞ (infinity)Ω

Good

Carefully re-do this troubleshooting guide steps.
If no problems were found with the circuits or connectors, replace the E-Shifter and go to "Verification Of Repair " procedure.

No Good

Repair or replace necessary, go to "Verification Of Repair " procedure.
