Monitor KDS Data

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

Inspection Condition	Inspection Procedure	Reference

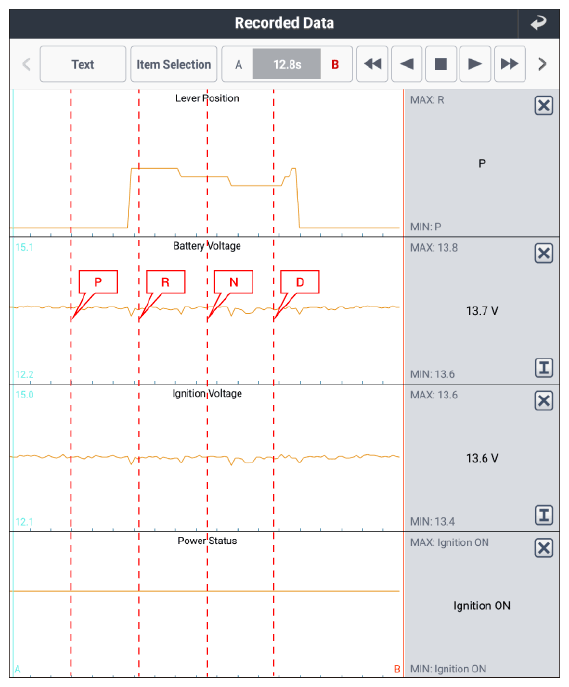

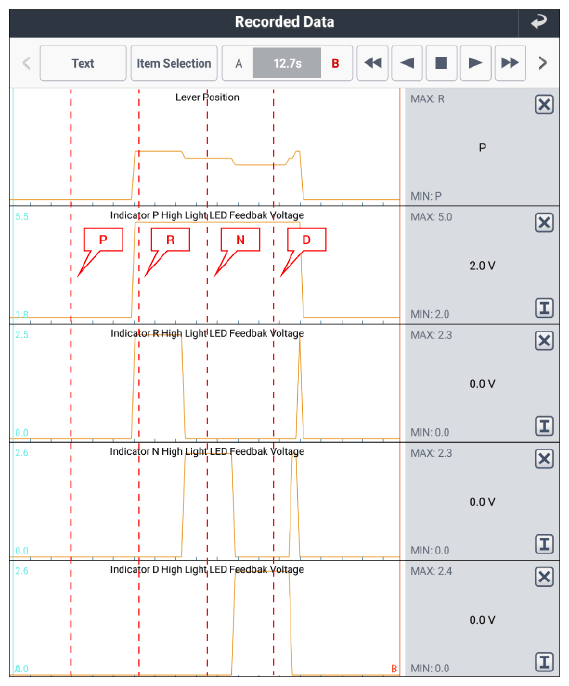

Engine "ON"	Connect KDS to "Data Link Connector (DLC)". Monitor "Current data" with KDS.	Fig.1

Courtesy of KIA MOTORS AMERICA, INC.

Good

Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "Verification Of Repair " procedure.

No Good

Go to "WIRING INSPECTION " procedure.
