Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON"
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
  3. Select "Clear Learning Value" in "Vehicle S/W management".
  4. After operation, perform the "Verification Of Repair " procedure.

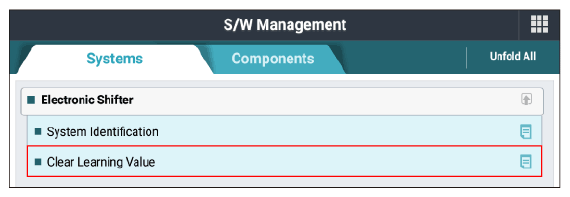

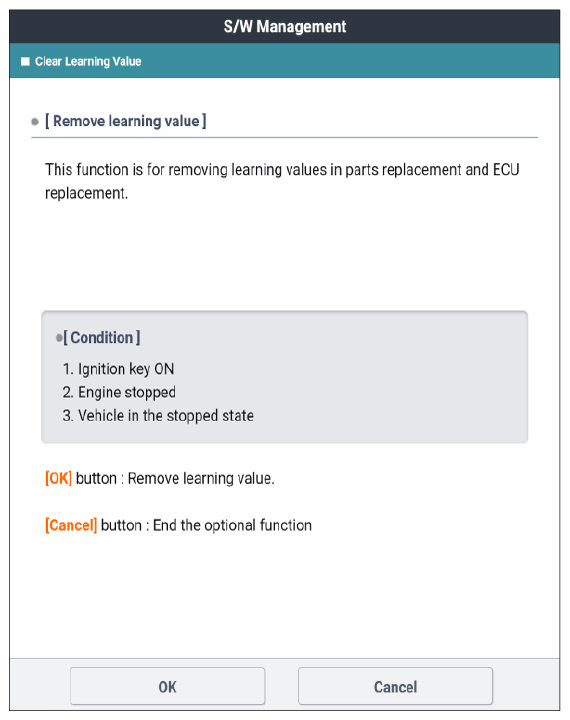

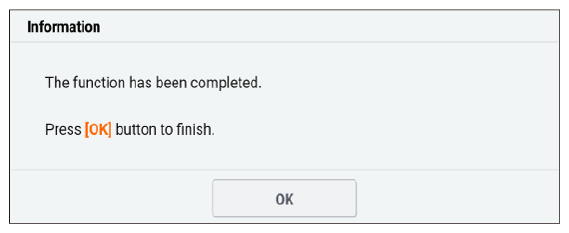

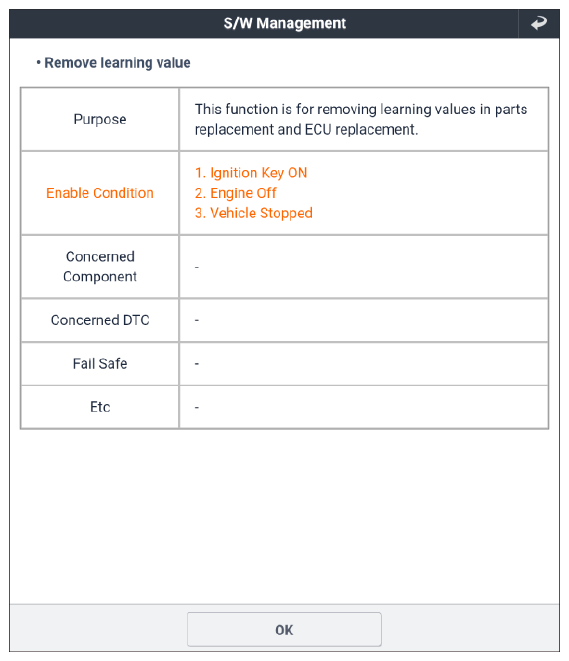

 Fig.1 to 4
G14964243Courtesy of KIA MOTORS AMERICA, INC.
G14964244Courtesy of KIA MOTORS AMERICA, INC.
G14964245Courtesy of KIA MOTORS AMERICA, INC.
G14964246Courtesy of KIA MOTORS AMERICA, INC.
