Circuit Inspection
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
| Module Inspection | |||||
|---|---|---|---|---|---|
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
| Connector | Terminal | Connector | Terminal | ||
|
DAU connector | 6 (Memory power) | Chassis ground | - | B+ |
| DAU connector | 7 (ON/START Input) | Chassis ground | - | B+ | |
|
DAU connector | 16 (ground) | Chassis ground | - | Approx. below 1Ω |
Good
- Go to "CAN Inspection" procedure.
No Good
- Repair as necessary and then go to "VERIFICATION OF REPAIR " procedure.

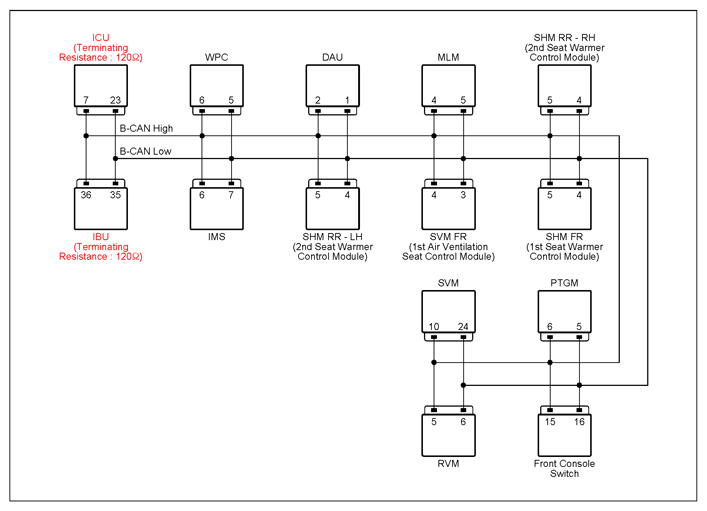

| CAN Inspection | |||||
|---|---|---|---|---|---|
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
| Connector | Terminal | Connector | Terminal | ||
|

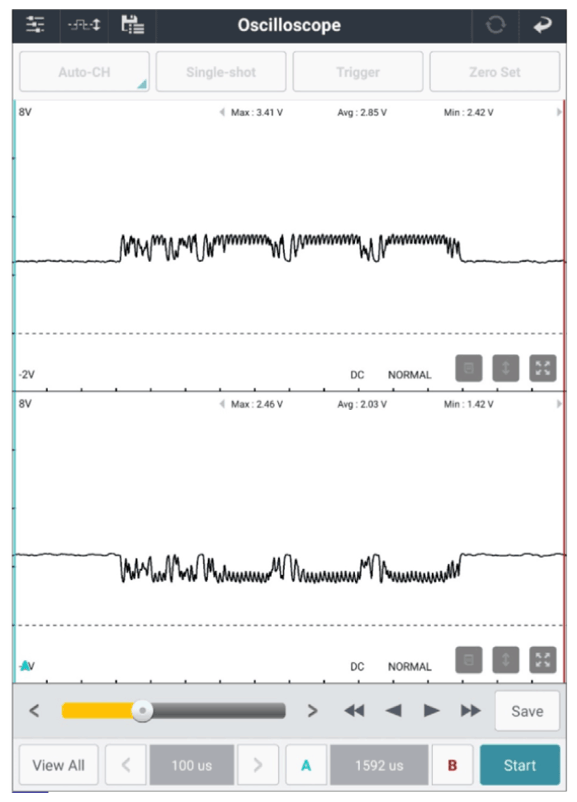

DAU connector | 2 (B-CAN high) | Chassis ground | - | Fig.1 |
| DAU connector | 1 (B-CAN low) | Chassis ground | - | ||
|
DAU connector | 2 (B-CAN high) | ICU connector | 7 (B-CAN high) | Approx. below 1Ω |
| DAU connector | 1 (B-CAN low) | ICU connector | 23 (B-CAN low) | Approx. below 1Ω | |
| DAU connector | 2 (B-CAN high) | IBU connector | 36 (B-CAN high) | Approx. below 1Ω | |
| DAU connector | 1 (B-CAN low) | IBU connector | 35 (B-CAN low) | Approx. below 1Ω | |
| DAU connector | 2 (B-CAN high) | Chassis ground | - | ∞ (infinity)Ω | |
| DAU connector | 1 (B-CAN low) | Chassis ground | - | ∞ (infinity)Ω | |
| DAU connector | 2 (B-CAN high) | DAU connector | 1 (B-CAN low) | Approx. 60Ω | |
| IBU (component side) | 36 (B-CAN high) | IBU (component side) | 35 (B-CAN low) | Approx. 120Ω | |
| ICU (component side) | 7 (B-CAN high) | ICU (component side) | 23 (B-CAN low) | Approx. 120Ω | |
Good
- Disconnect B-CAN communication units one by one and monitor DTC to find the cause.
- If the DTC erase, substitute with a known-good unit and check for proper operation. If the problem is corrected, replace the unit and go to "VERIFICATION OF REPAIR " procedure.
No Good
- Check for open, short to battery/ground in B-CAN line.
- Repair as necessary, go to "VERIFICATION OF REPAIR " procedure.
