Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 5

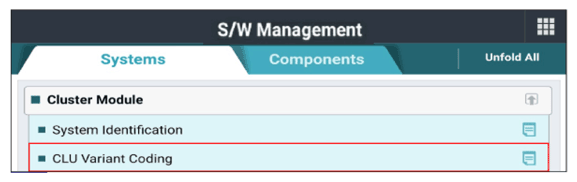

G14960141Courtesy of KIA MOTORS AMERICA, INC.

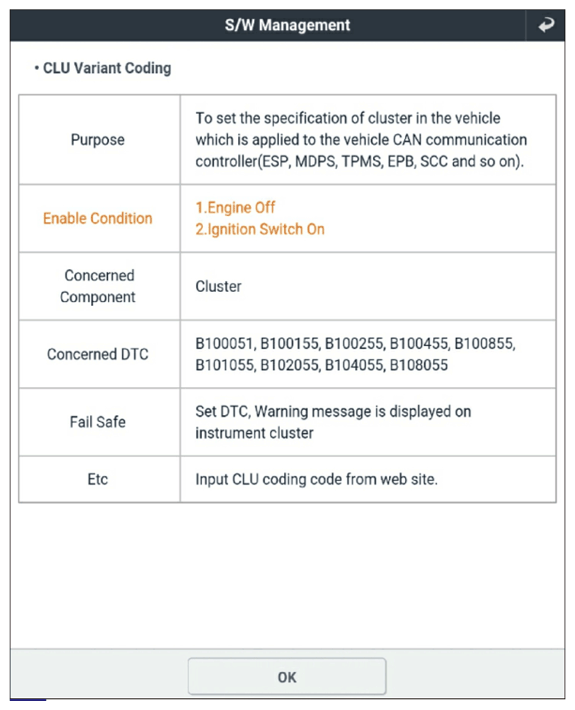

G14960142Courtesy of KIA MOTORS AMERICA, INC.

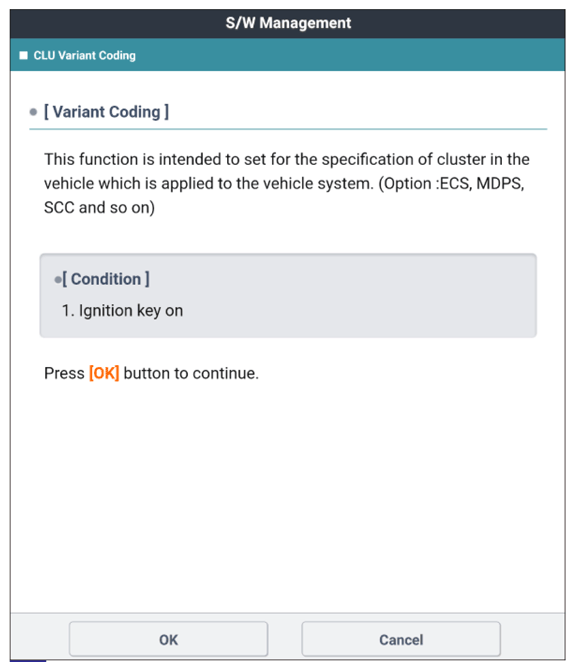

G14960143Courtesy of KIA MOTORS AMERICA, INC.

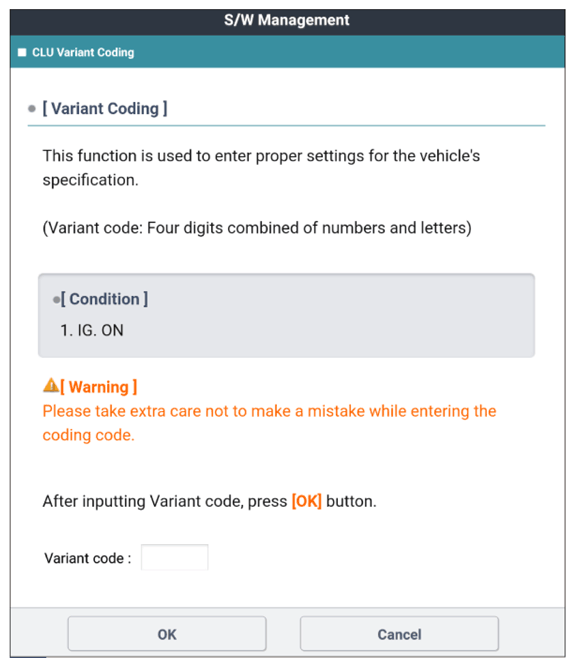

G14960144Courtesy of KIA MOTORS AMERICA, INC.

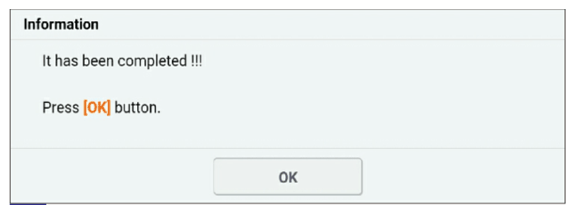

G14960145Courtesy of KIA MOTORS AMERICA, INC.
