Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.

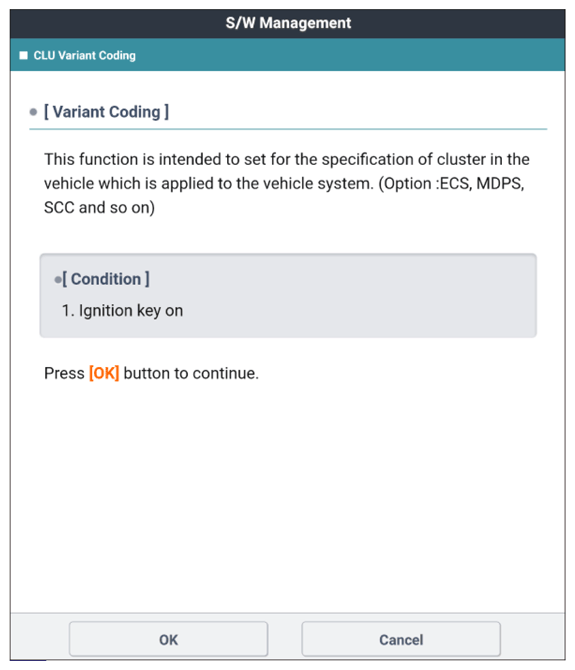

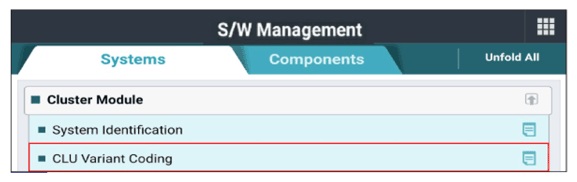

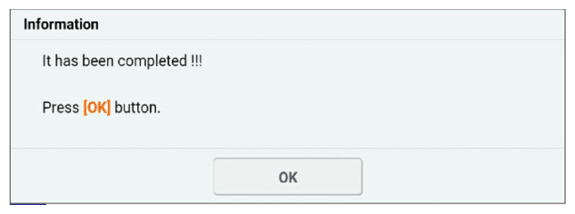

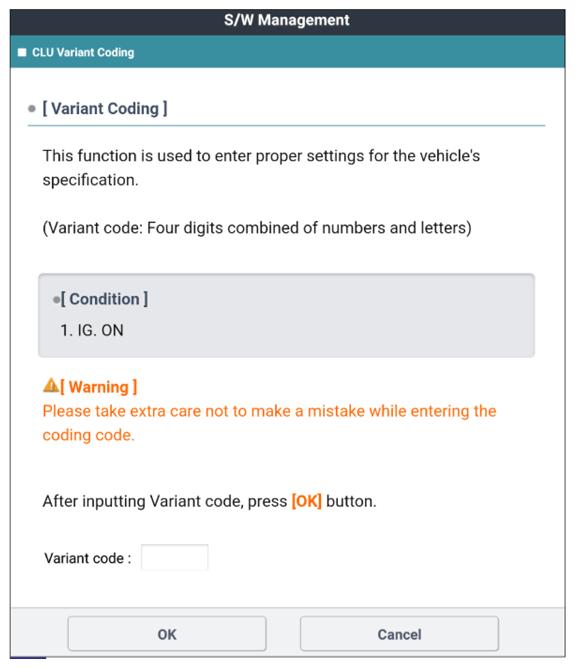

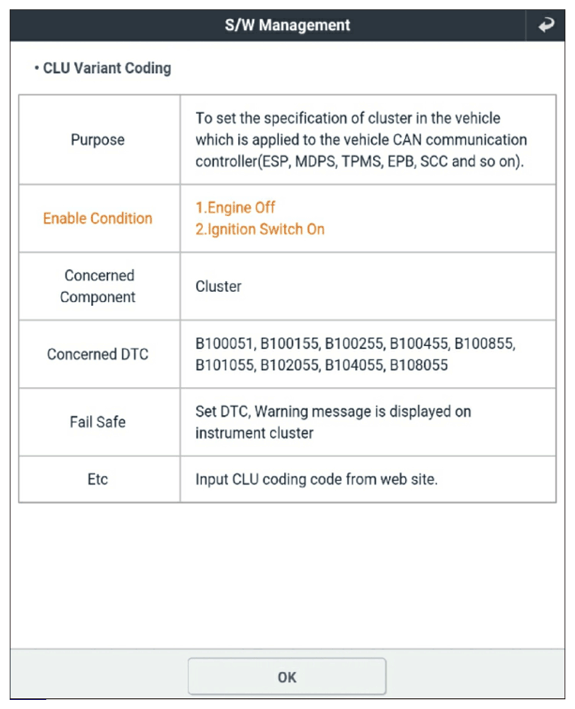

 Fig.1 to 5
G14960130Courtesy of KIA MOTORS AMERICA, INC.
G14960131Courtesy of KIA MOTORS AMERICA, INC.
G14960132Courtesy of KIA MOTORS AMERICA, INC.
G14960133Courtesy of KIA MOTORS AMERICA, INC.
G14960134Courtesy of KIA MOTORS AMERICA, INC.
