Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 5

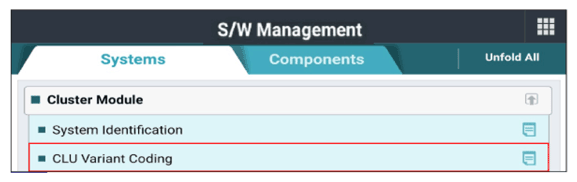

G14960119Courtesy of KIA MOTORS AMERICA, INC.

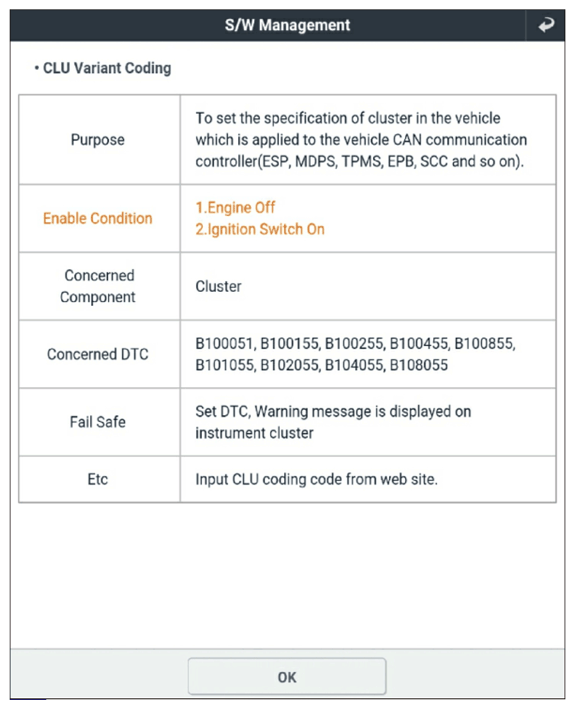

G14960120Courtesy of KIA MOTORS AMERICA, INC.

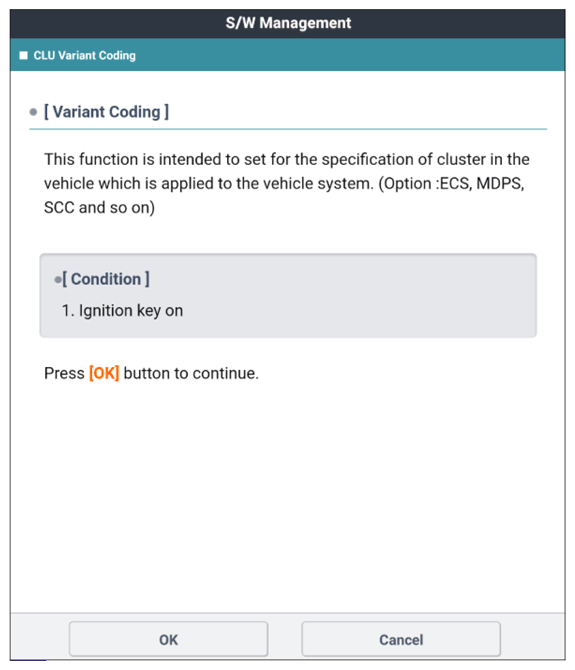

G14960121Courtesy of KIA MOTORS AMERICA, INC.

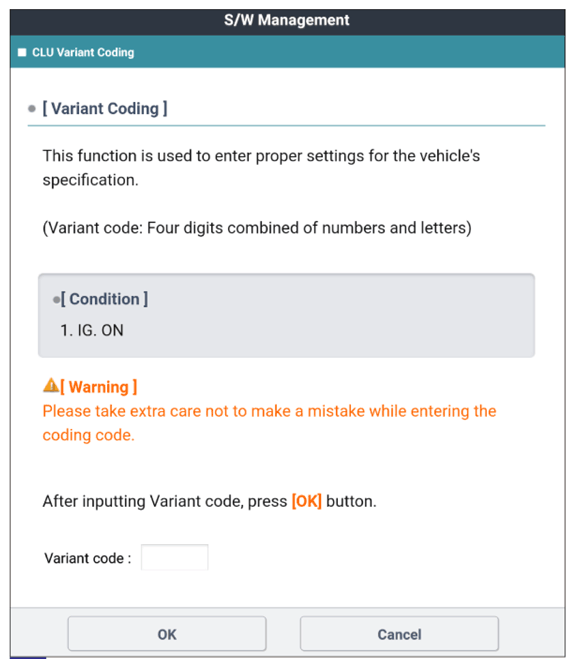

G14960122Courtesy of KIA MOTORS AMERICA, INC.

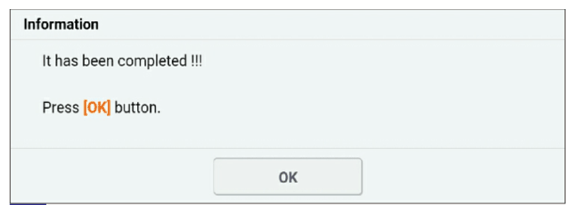

G14960123Courtesy of KIA MOTORS AMERICA, INC.
