Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 5

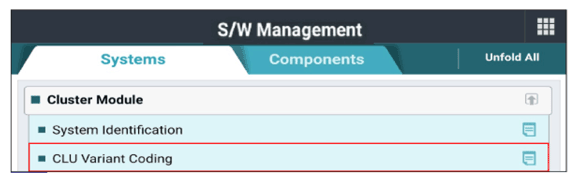

G14960108Courtesy of KIA MOTORS AMERICA, INC.

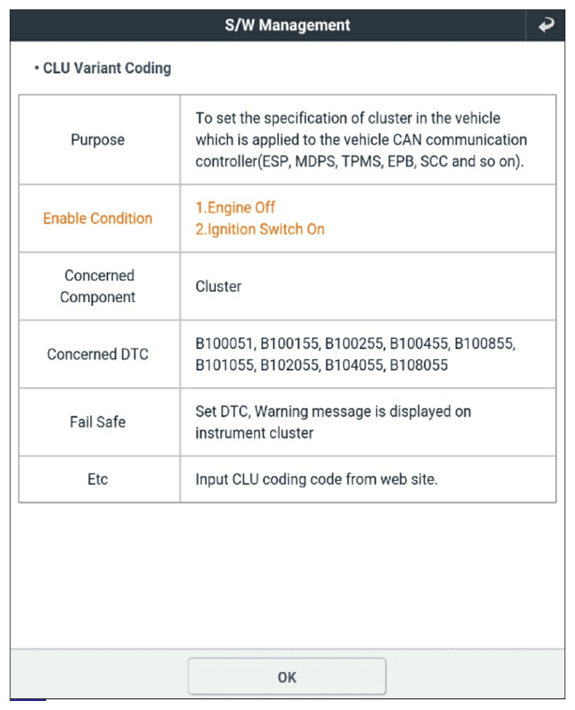

G14960109Courtesy of KIA MOTORS AMERICA, INC.

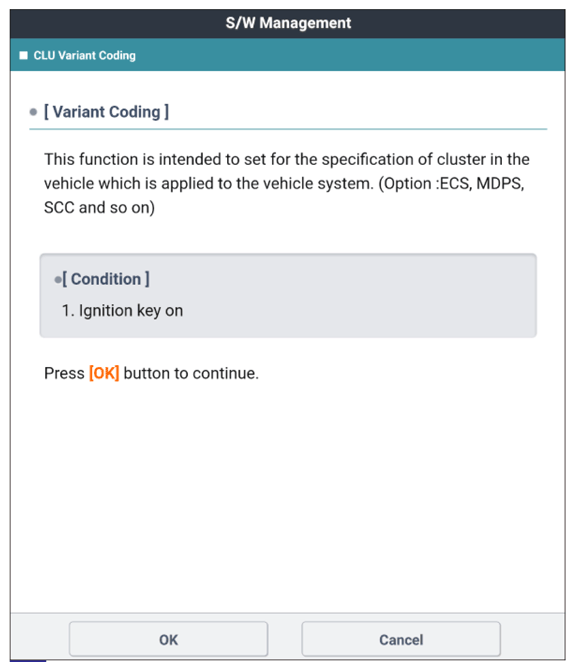

G14960110Courtesy of KIA MOTORS AMERICA, INC.

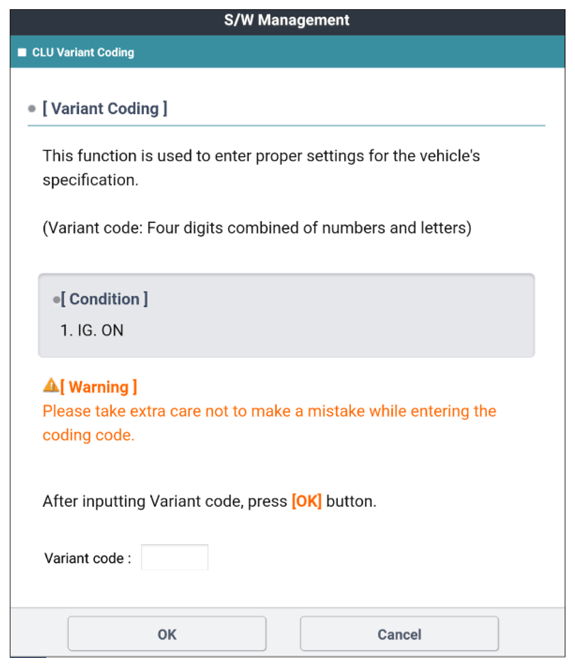

G14960111Courtesy of KIA MOTORS AMERICA, INC.

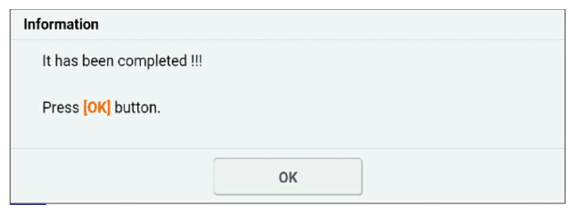

G14960112Courtesy of KIA MOTORS AMERICA, INC.
