Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 5

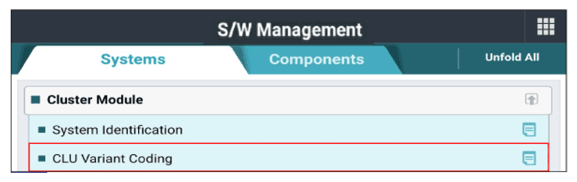

G14960088Courtesy of KIA MOTORS AMERICA, INC.

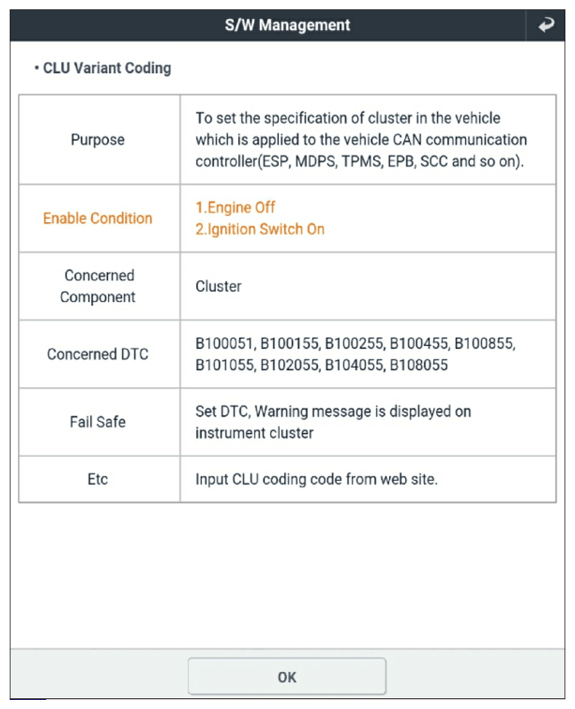

G14960089Courtesy of KIA MOTORS AMERICA, INC.

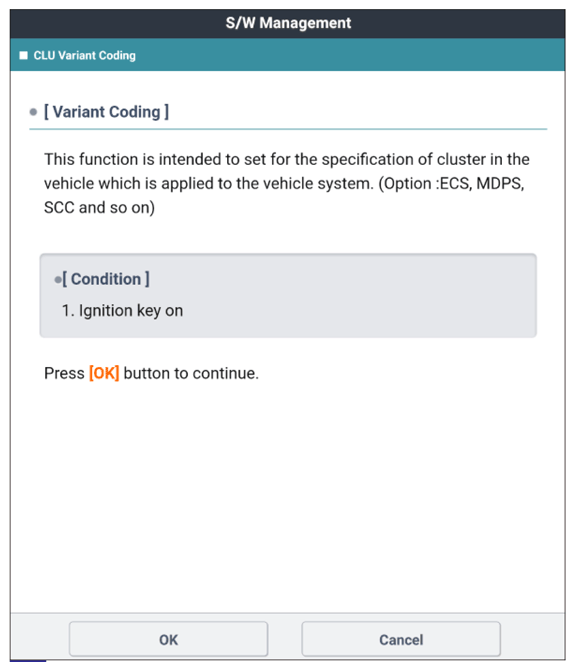

G14960090Courtesy of KIA MOTORS AMERICA, INC.

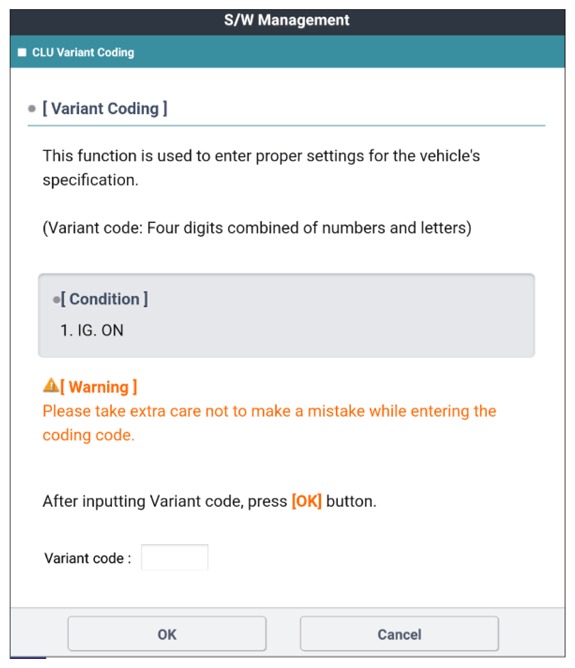

G14960091Courtesy of KIA MOTORS AMERICA, INC.

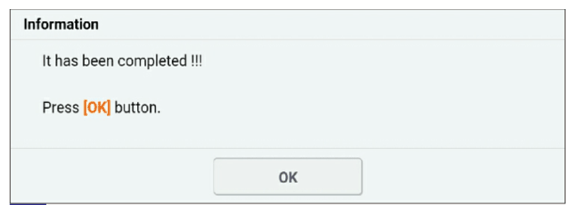

G14960092Courtesy of KIA MOTORS AMERICA, INC.
