Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 5

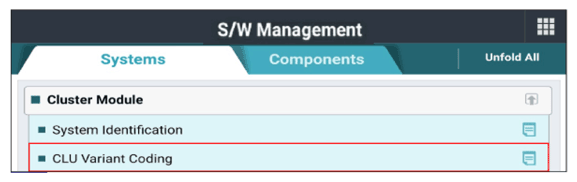

G14960079Courtesy of KIA MOTORS AMERICA, INC.

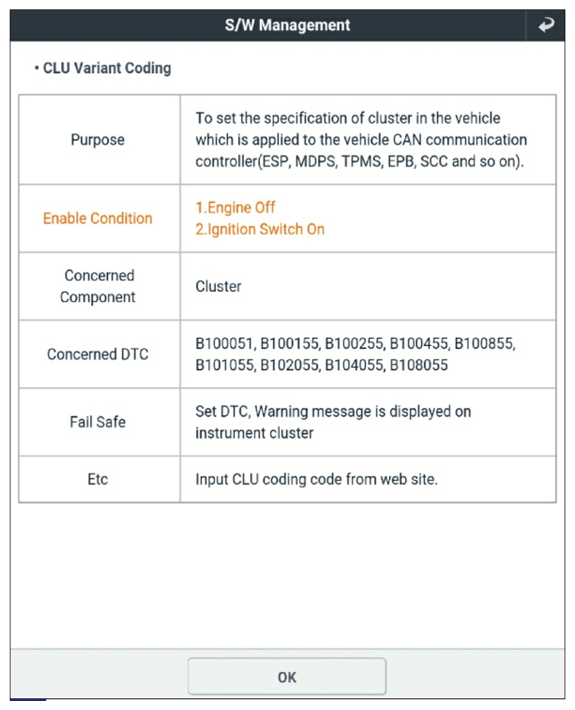

G14960080Courtesy of KIA MOTORS AMERICA, INC.

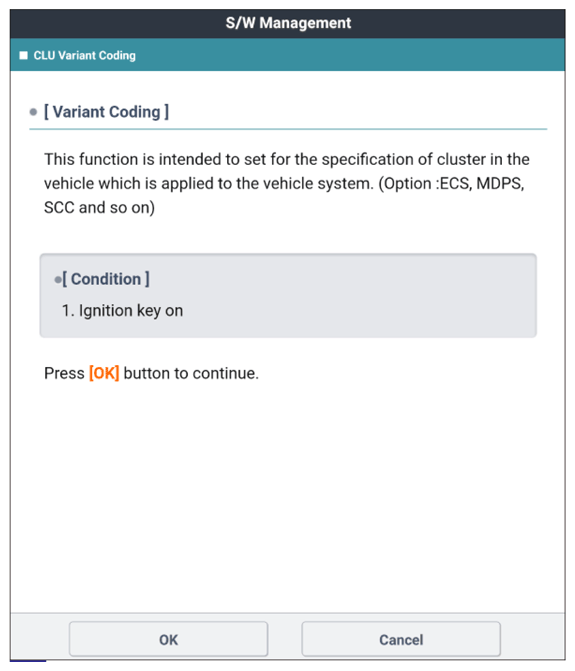

G14960081Courtesy of KIA MOTORS AMERICA, INC.

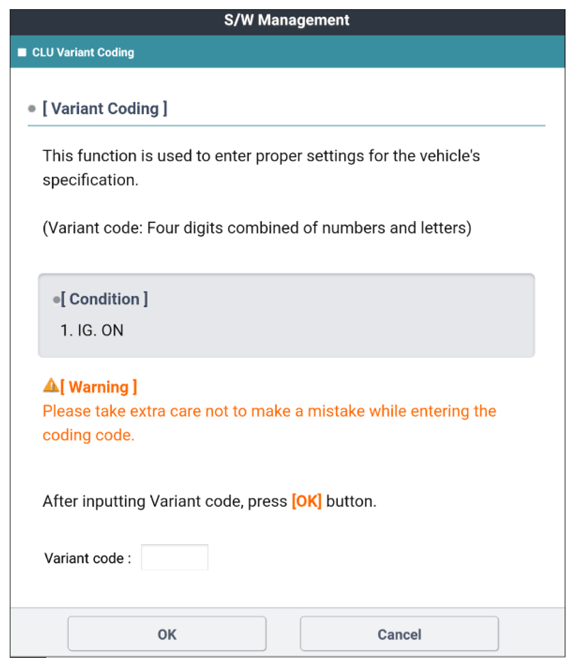

G14960082Courtesy of KIA MOTORS AMERICA, INC.

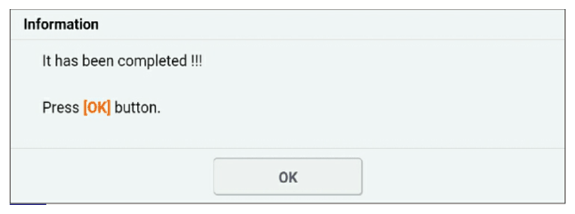

G14960083Courtesy of KIA MOTORS AMERICA, INC.
