Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 5

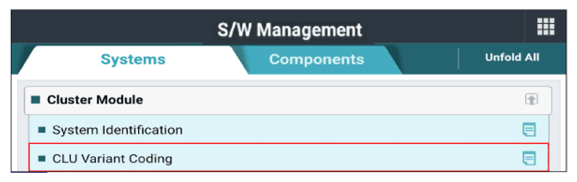

G14960068Courtesy of KIA MOTORS AMERICA, INC.

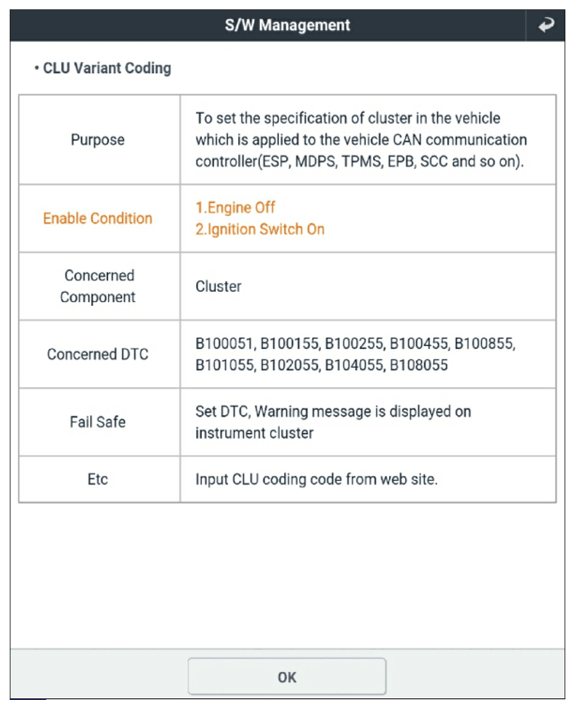

G14960069Courtesy of KIA MOTORS AMERICA, INC.

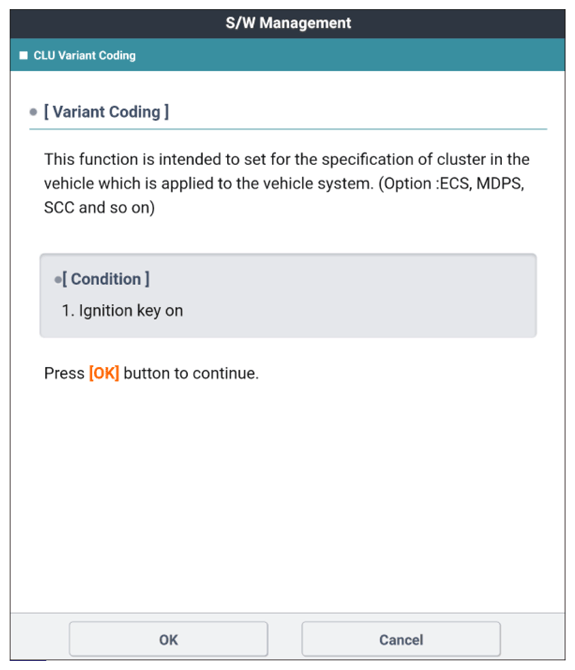

G14960070Courtesy of KIA MOTORS AMERICA, INC.

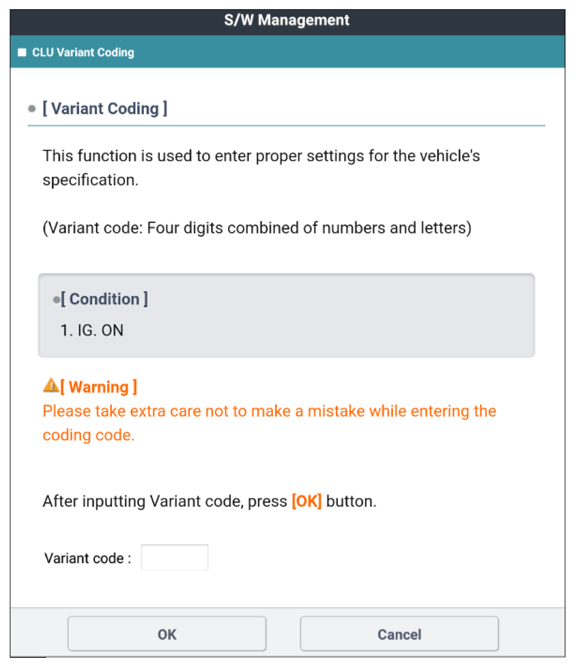

G14960071Courtesy of KIA MOTORS AMERICA, INC.

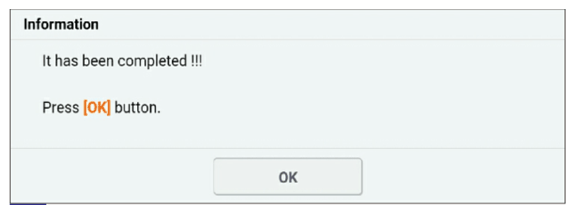

G14960072Courtesy of KIA MOTORS AMERICA, INC.
