Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.

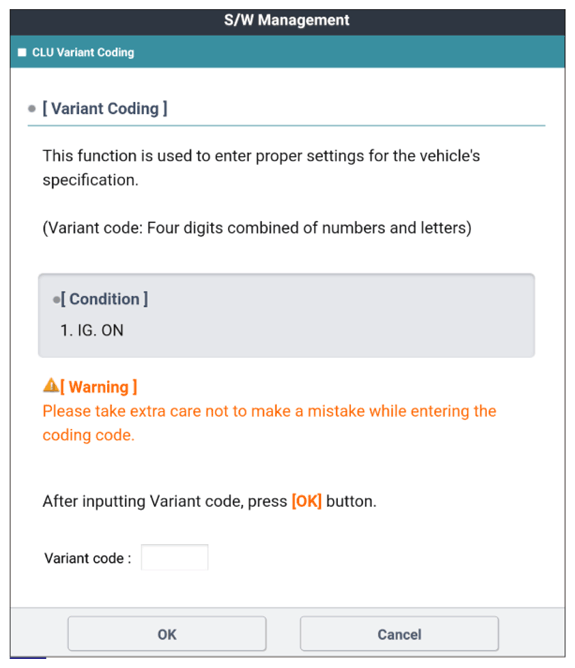

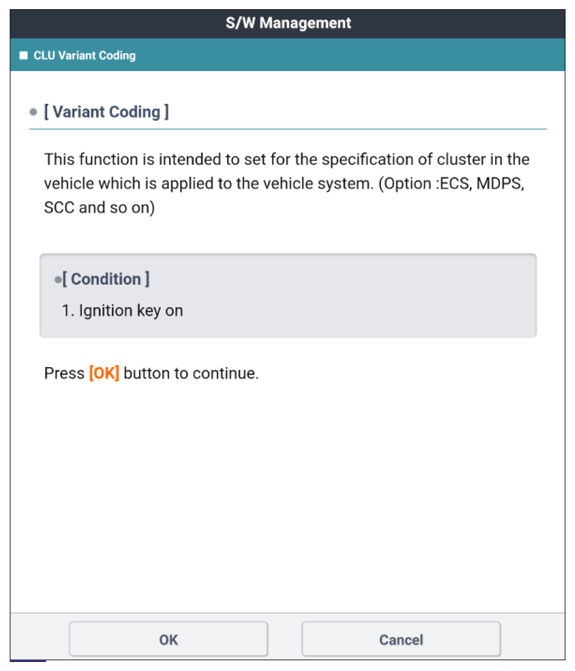

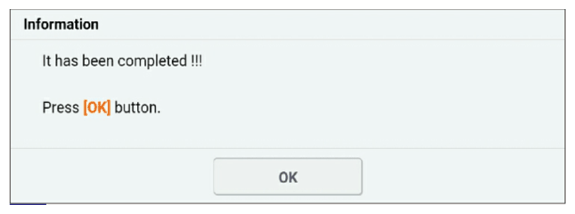

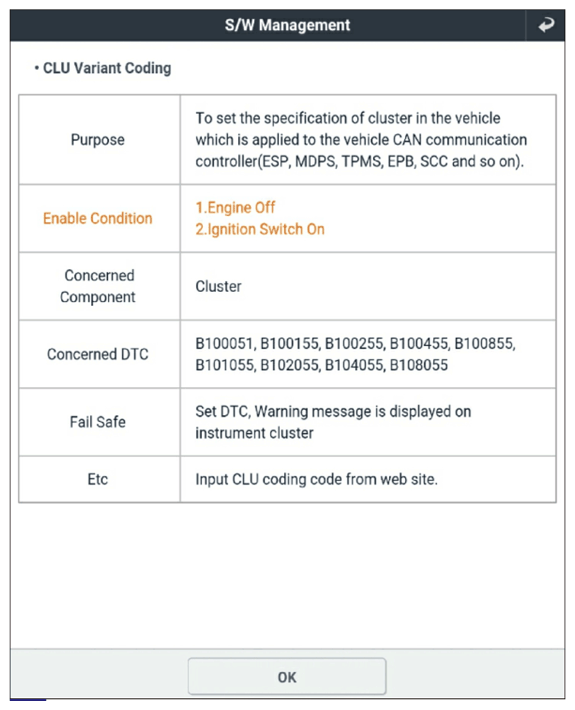

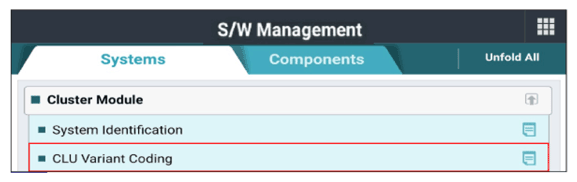

 Fig.1 to 5
G14960057Courtesy of KIA MOTORS AMERICA, INC.
G14960058Courtesy of KIA MOTORS AMERICA, INC.
G14960059Courtesy of KIA MOTORS AMERICA, INC.
G14960060Courtesy of KIA MOTORS AMERICA, INC.
G14960061Courtesy of KIA MOTORS AMERICA, INC.
