Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 5

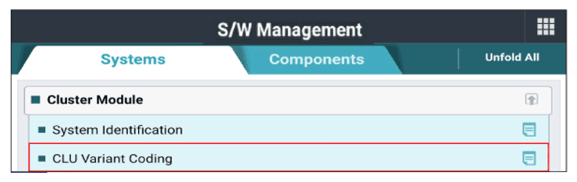

G14960046Courtesy of KIA MOTORS AMERICA, INC.

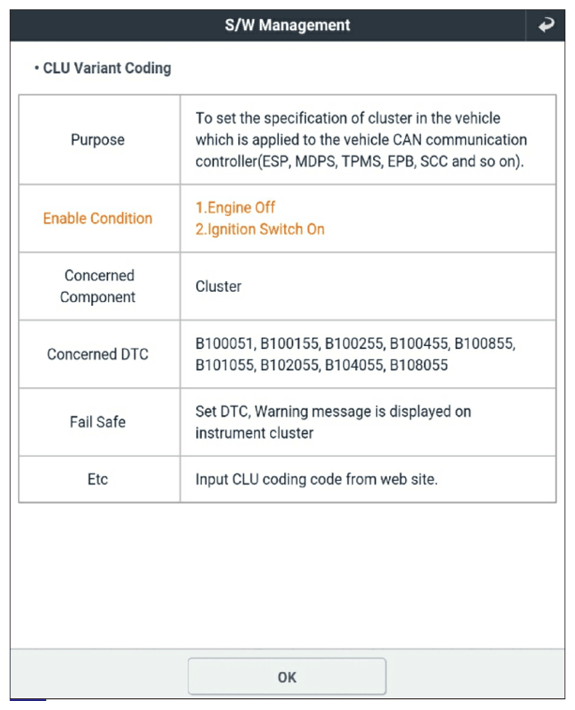

G14960047Courtesy of KIA MOTORS AMERICA, INC.

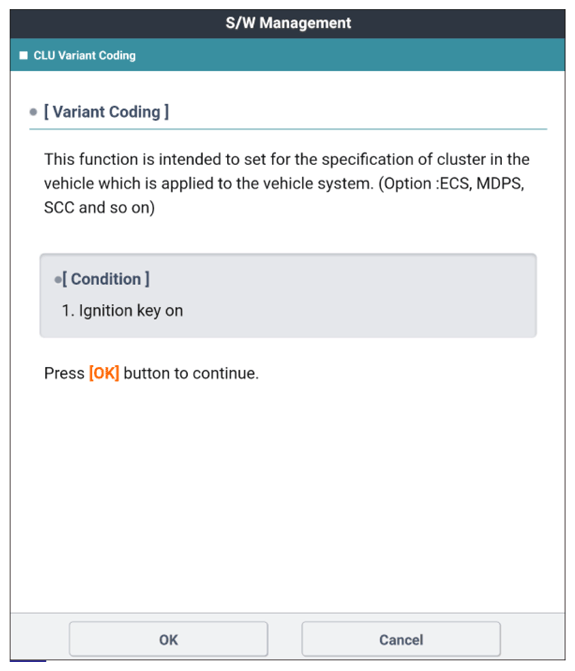

G14960048Courtesy of KIA MOTORS AMERICA, INC.

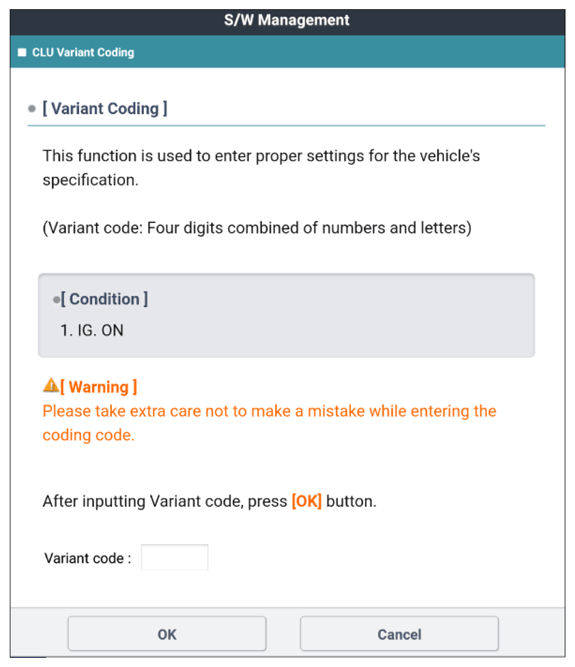

G14960049Courtesy of KIA MOTORS AMERICA, INC.

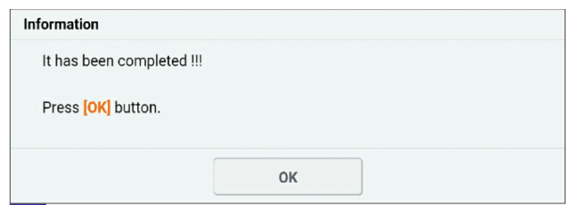

G14960050Courtesy of KIA MOTORS AMERICA, INC.
