Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 5

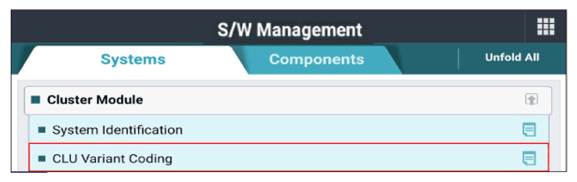

G14960035Courtesy of KIA MOTORS AMERICA, INC.

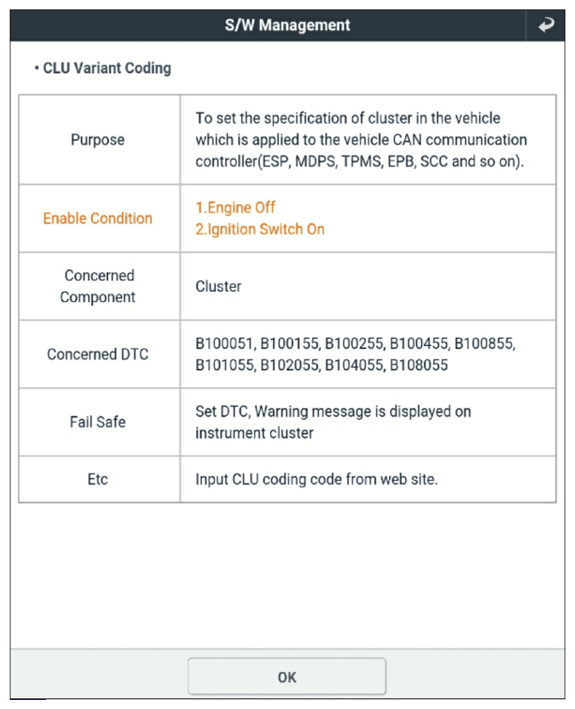

G14960036Courtesy of KIA MOTORS AMERICA, INC.

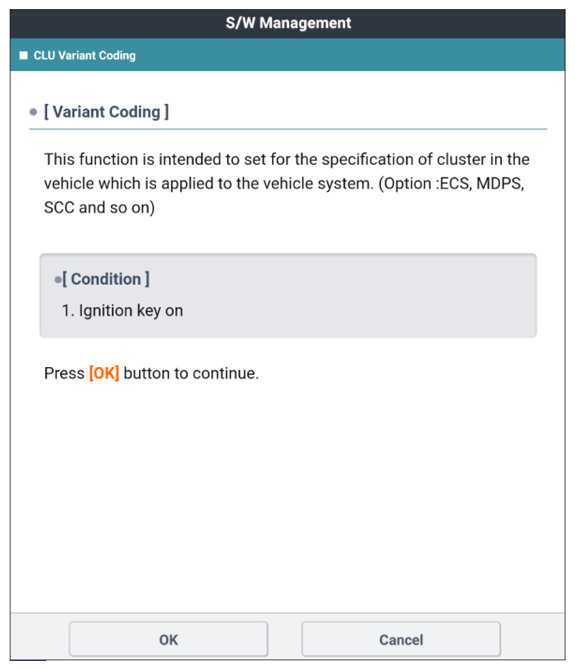

G14960037Courtesy of KIA MOTORS AMERICA, INC.

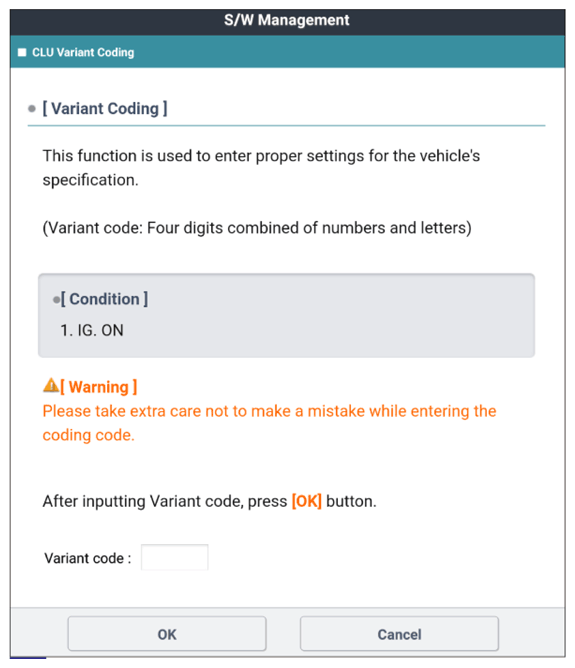

G14960038Courtesy of KIA MOTORS AMERICA, INC.

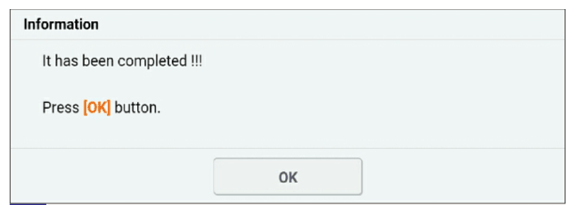

G14960039Courtesy of KIA MOTORS AMERICA, INC.
