Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 5

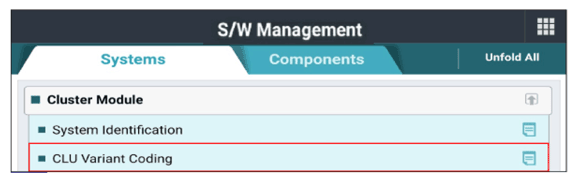

G14960024Courtesy of KIA MOTORS AMERICA, INC.

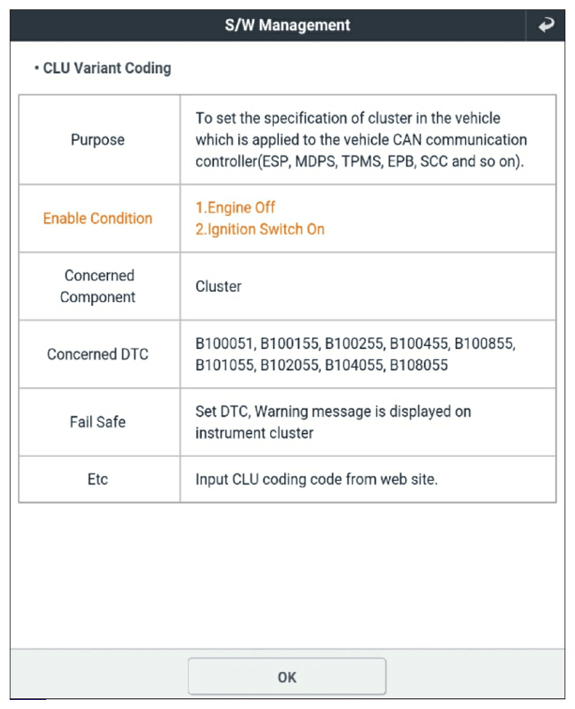

G14960025Courtesy of KIA MOTORS AMERICA, INC.

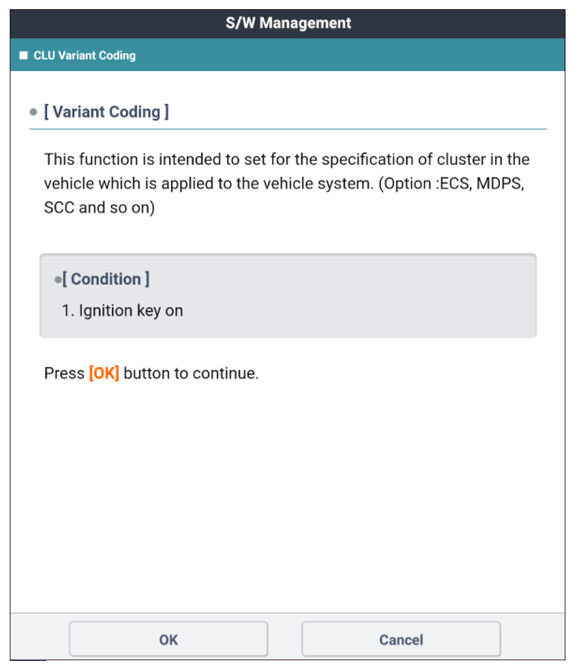

G14960026Courtesy of KIA MOTORS AMERICA, INC.

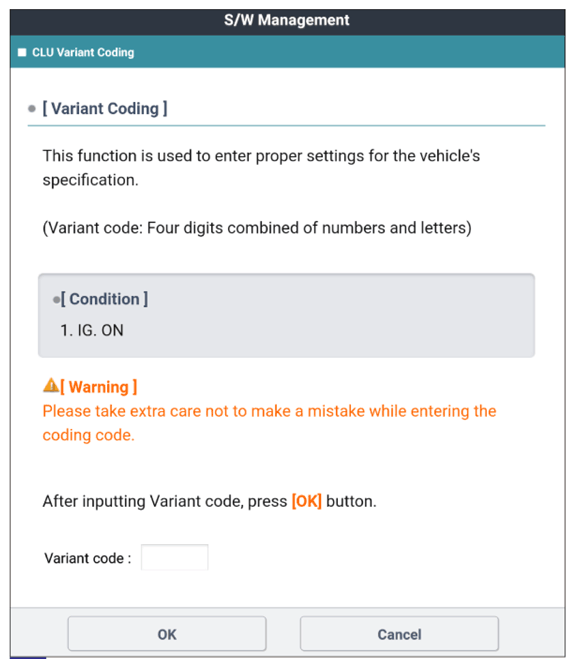

G14960027Courtesy of KIA MOTORS AMERICA, INC.

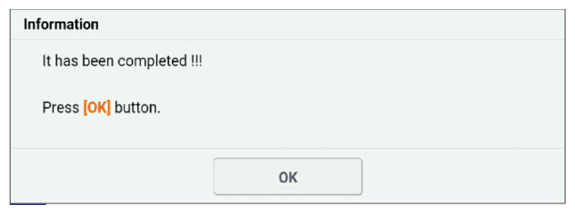

G14960028Courtesy of KIA MOTORS AMERICA, INC.
