Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.

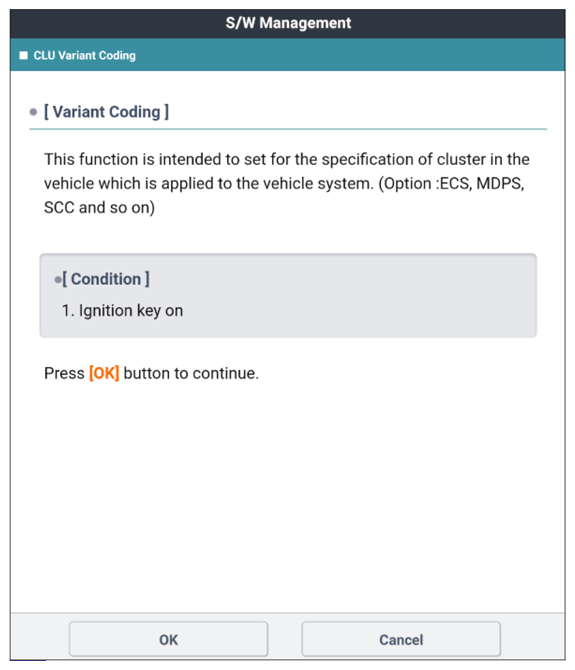

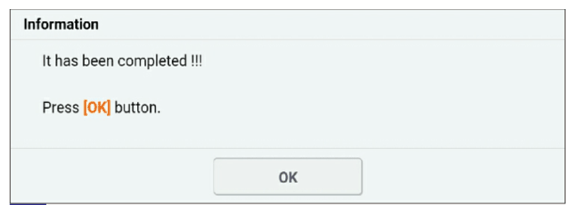

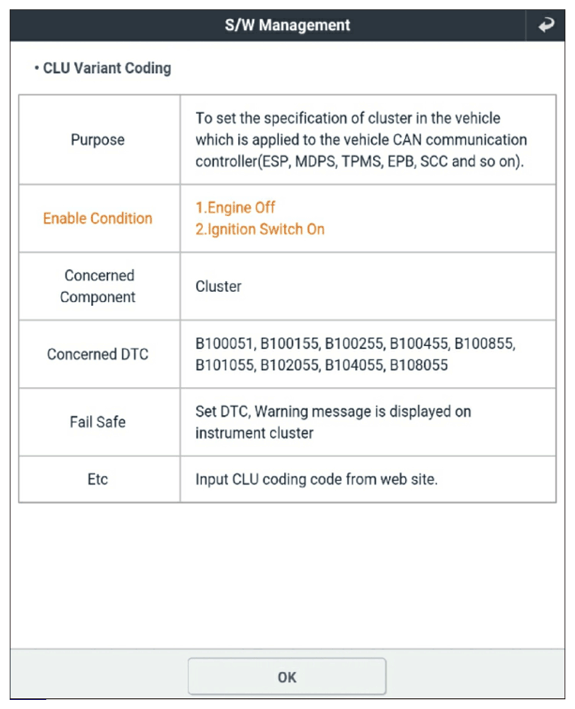

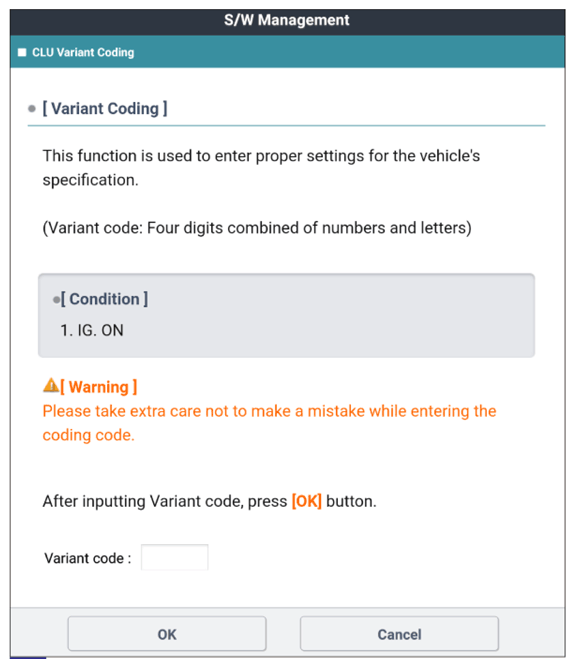

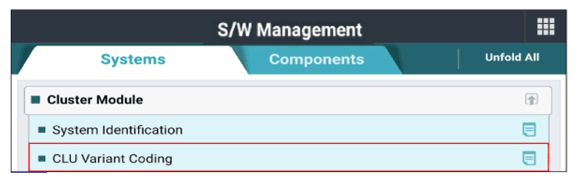

 Fig.1 to 5
G14960013Courtesy of KIA MOTORS AMERICA, INC.
G14960014Courtesy of KIA MOTORS AMERICA, INC.
G14960015Courtesy of KIA MOTORS AMERICA, INC.
G14960016Courtesy of KIA MOTORS AMERICA, INC.
G14960017Courtesy of KIA MOTORS AMERICA, INC.
