Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 5

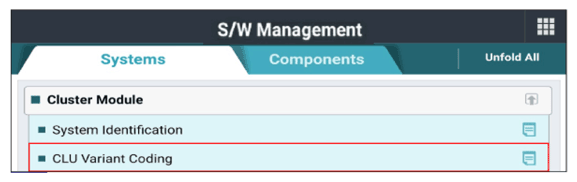

G14959991Courtesy of KIA MOTORS AMERICA, INC.

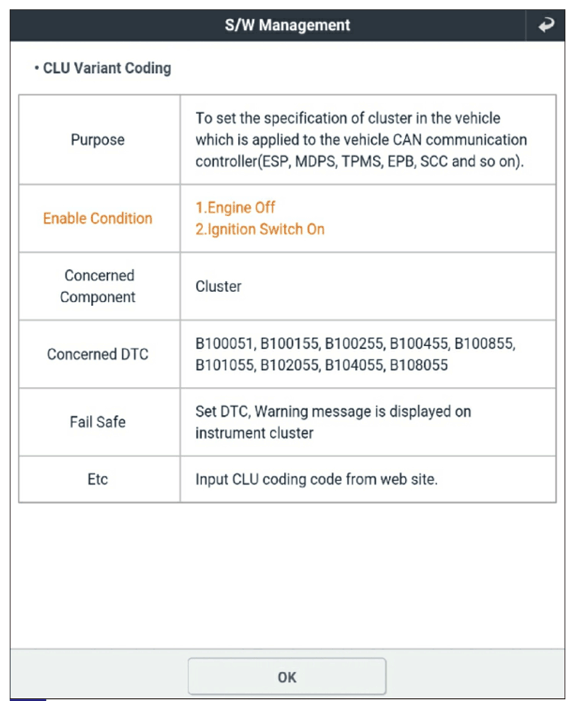

G14959992Courtesy of KIA MOTORS AMERICA, INC.

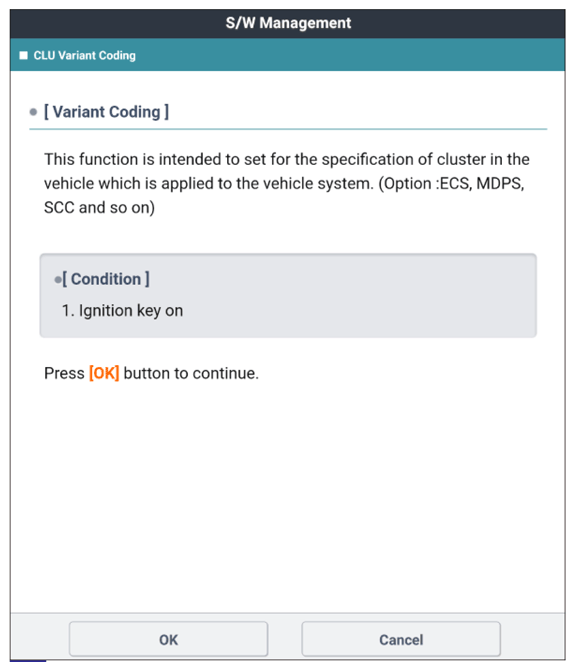

G14959993Courtesy of KIA MOTORS AMERICA, INC.

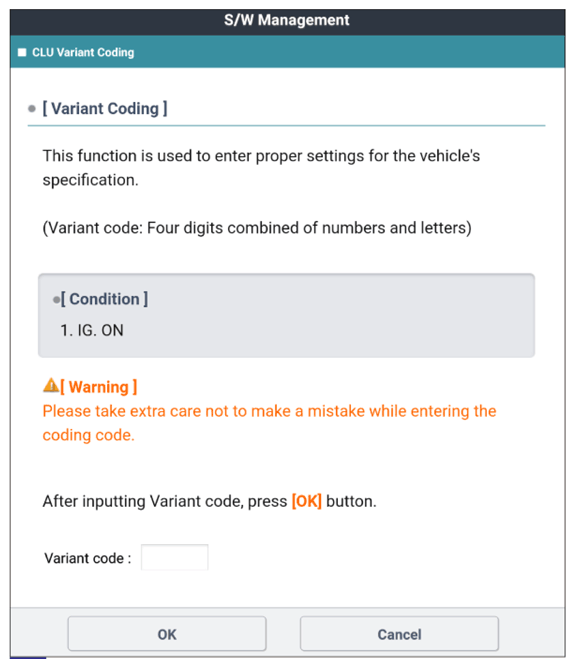

G14959994Courtesy of KIA MOTORS AMERICA, INC.

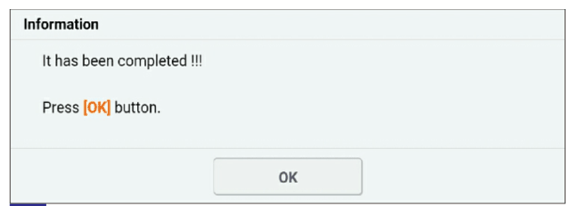

G14959995Courtesy of KIA MOTORS AMERICA, INC.
