Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 5

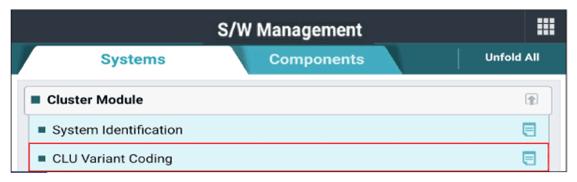

G14959980Courtesy of KIA MOTORS AMERICA, INC.

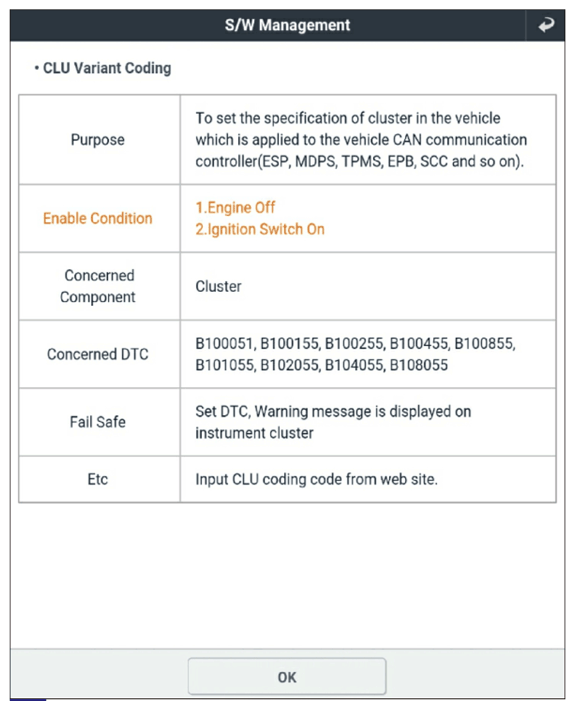

G14959981Courtesy of KIA MOTORS AMERICA, INC.

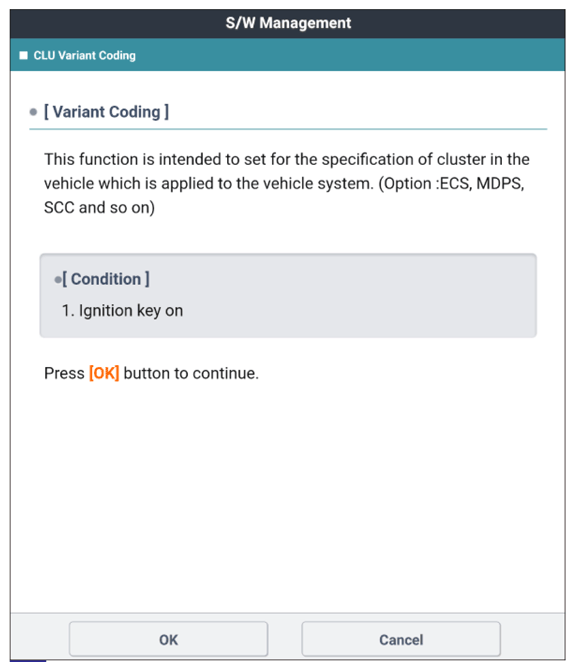

G14959982Courtesy of KIA MOTORS AMERICA, INC.

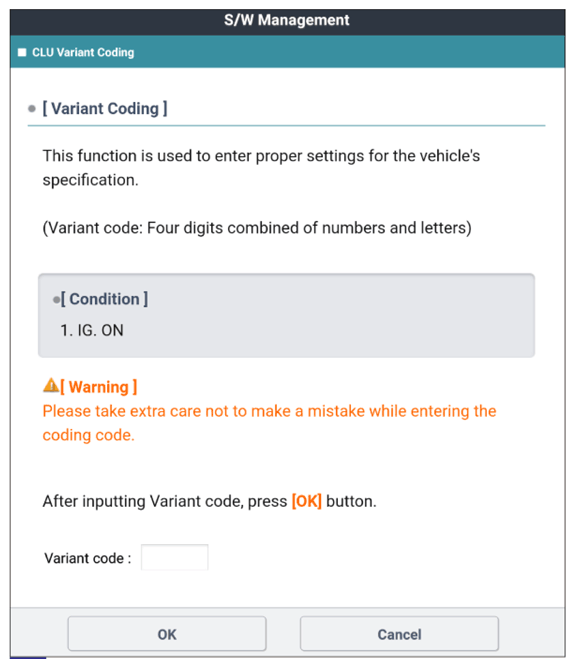

G14959983Courtesy of KIA MOTORS AMERICA, INC.

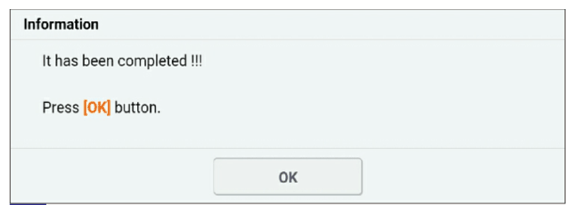

G14959984Courtesy of KIA MOTORS AMERICA, INC.
