Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 5

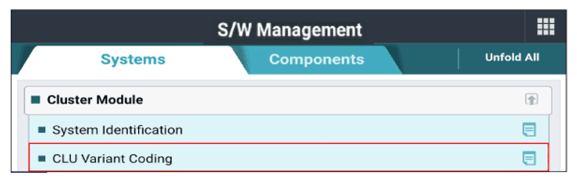

G14959969Courtesy of KIA MOTORS AMERICA, INC.

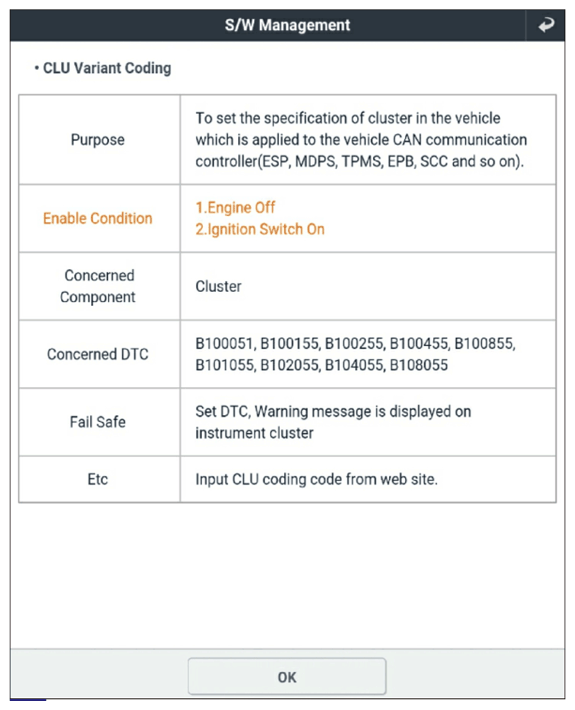

G14959970Courtesy of KIA MOTORS AMERICA, INC.

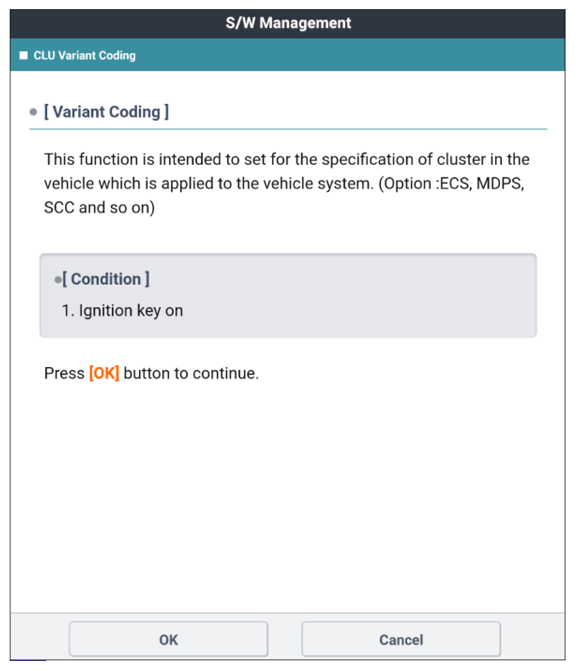

G14959971Courtesy of KIA MOTORS AMERICA, INC.

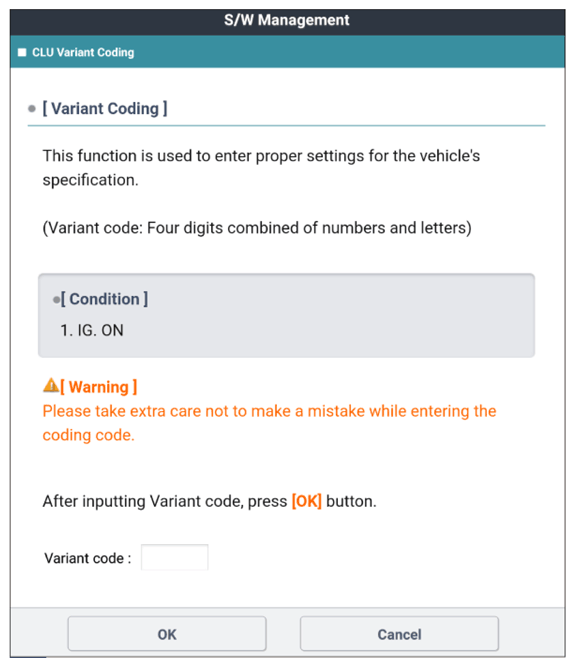

G14959972Courtesy of KIA MOTORS AMERICA, INC.

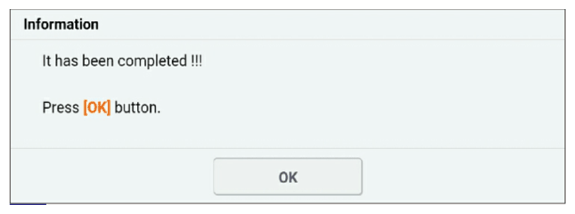

G14959973Courtesy of KIA MOTORS AMERICA, INC.
