Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 5

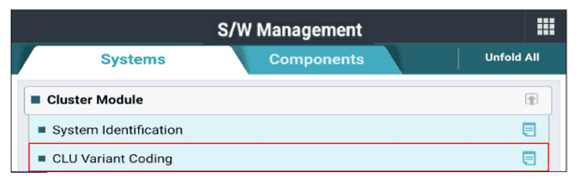

G14959958Courtesy of KIA MOTORS AMERICA, INC.

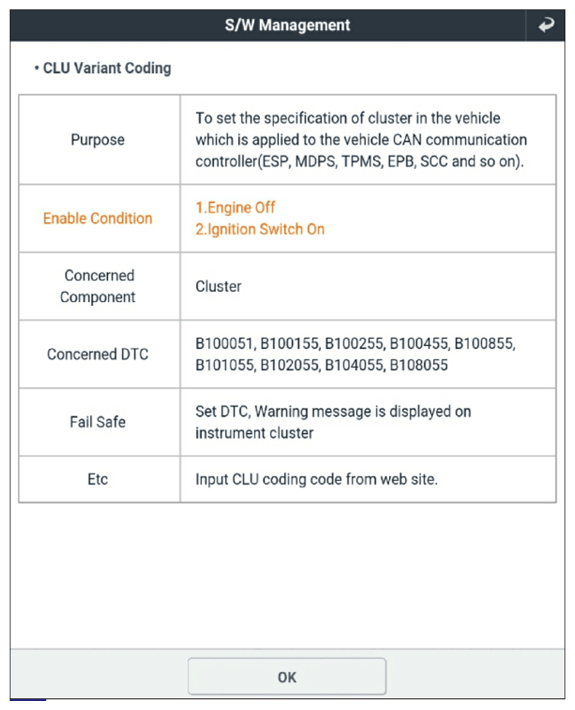

G14959959Courtesy of KIA MOTORS AMERICA, INC.

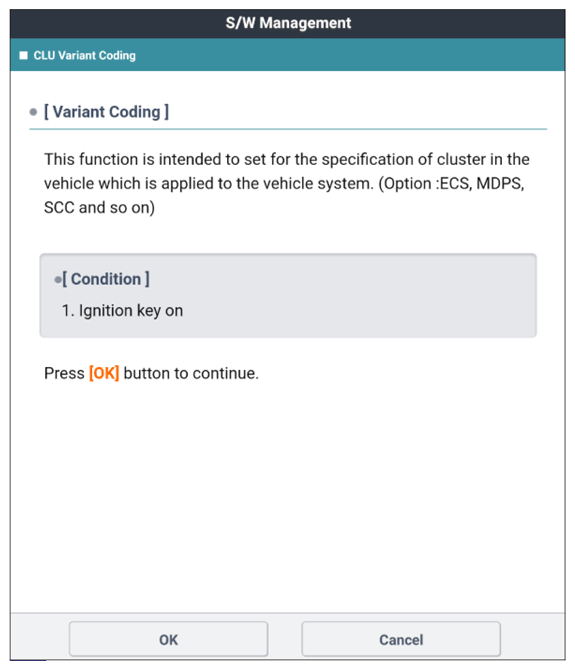

G14959960Courtesy of KIA MOTORS AMERICA, INC.

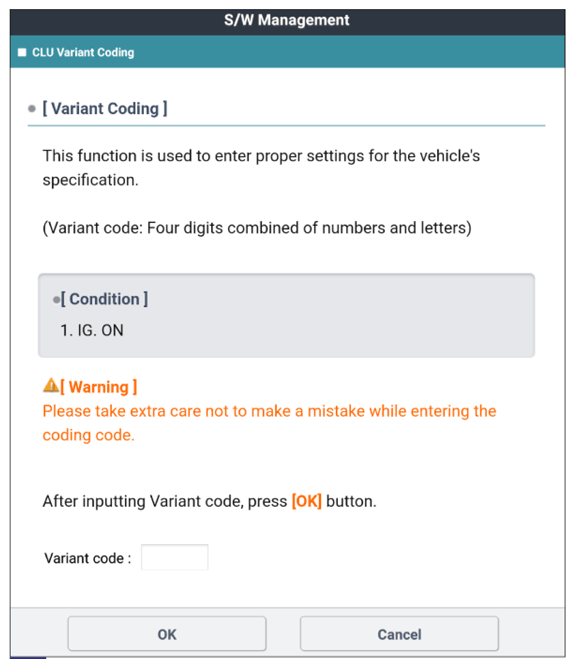

G14959961Courtesy of KIA MOTORS AMERICA, INC.

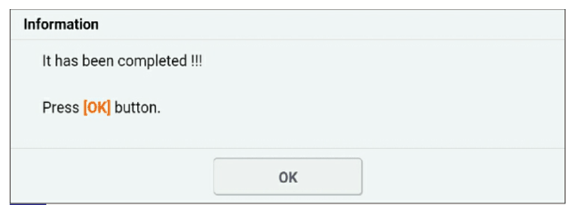

G14959962Courtesy of KIA MOTORS AMERICA, INC.
