Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 5

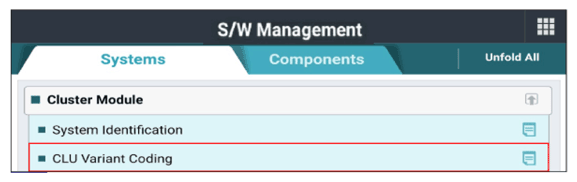

G14959947Courtesy of KIA MOTORS AMERICA, INC.

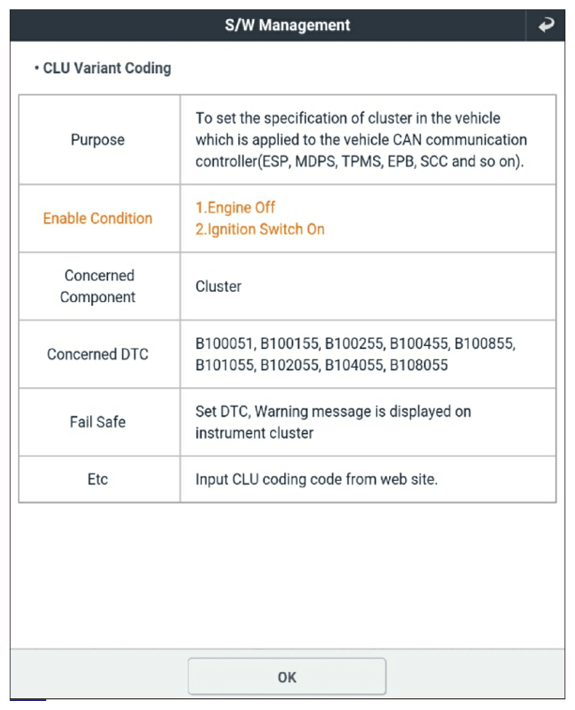

G14959948Courtesy of KIA MOTORS AMERICA, INC.

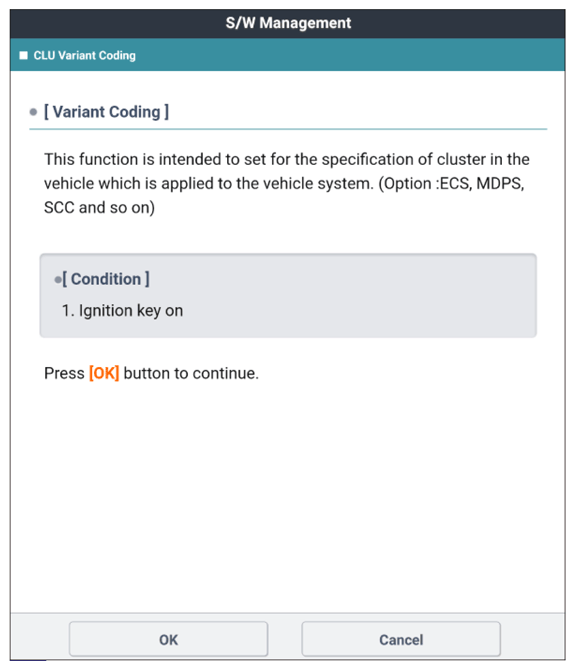

G14959949Courtesy of KIA MOTORS AMERICA, INC.

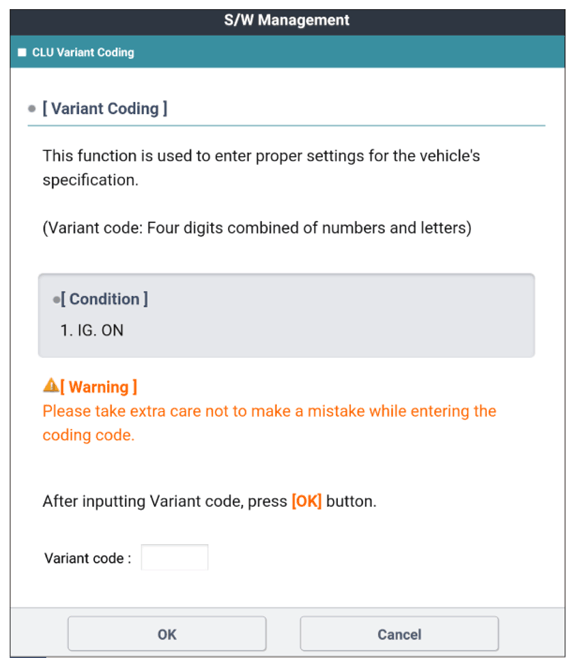

G14959950Courtesy of KIA MOTORS AMERICA, INC.

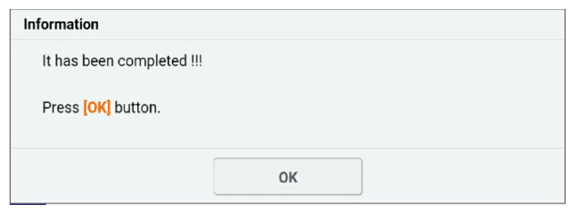

G14959951Courtesy of KIA MOTORS AMERICA, INC.
