Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 5

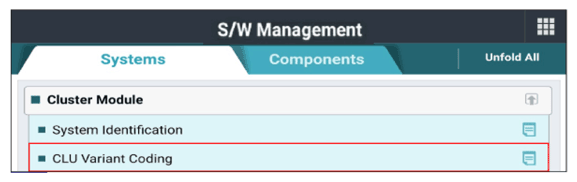

G14959936Courtesy of KIA MOTORS AMERICA, INC.

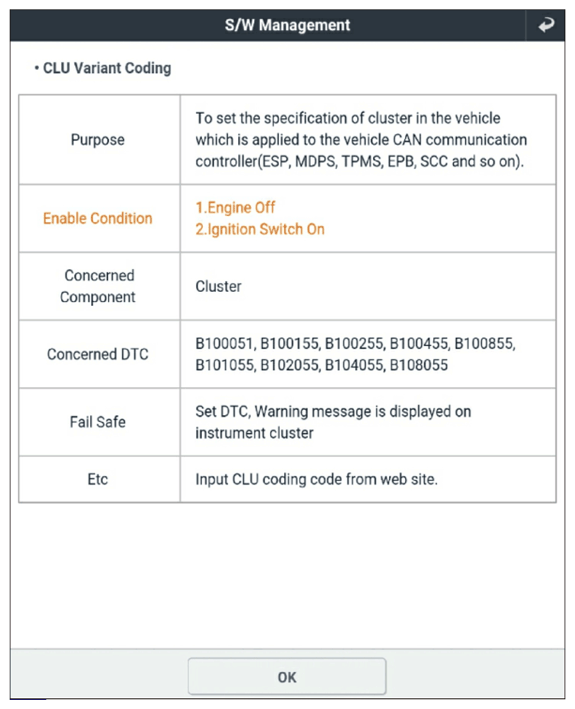

G14959937Courtesy of KIA MOTORS AMERICA, INC.

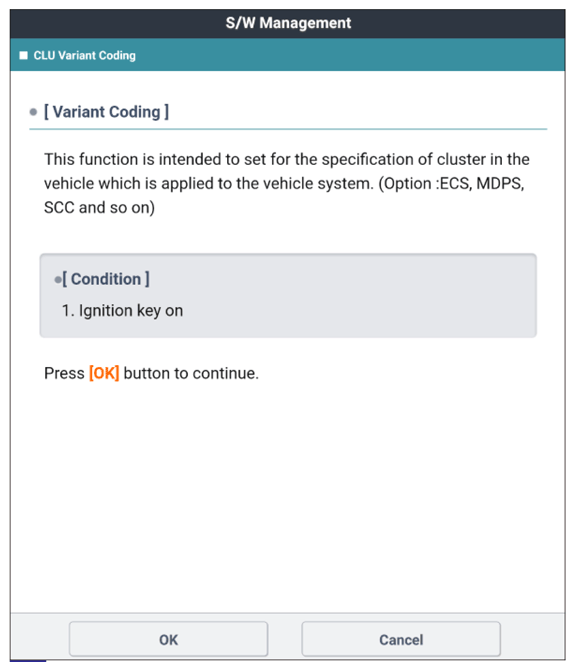

G14959938Courtesy of KIA MOTORS AMERICA, INC.

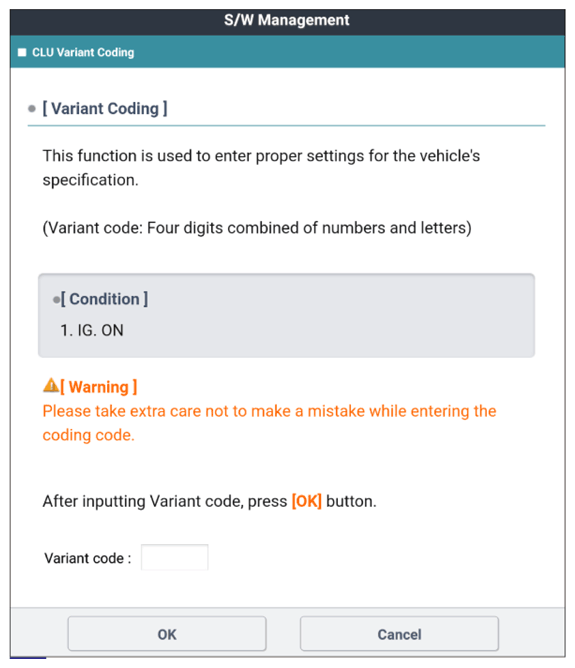

G14959939Courtesy of KIA MOTORS AMERICA, INC.

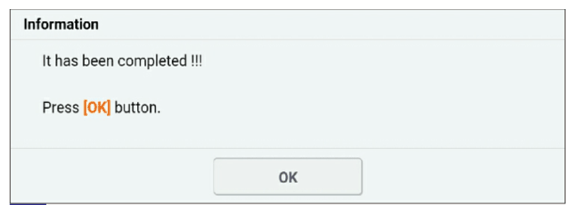

G14959940Courtesy of KIA MOTORS AMERICA, INC.
