Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 5

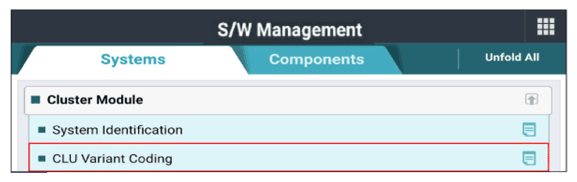

G14959916Courtesy of KIA MOTORS AMERICA, INC.

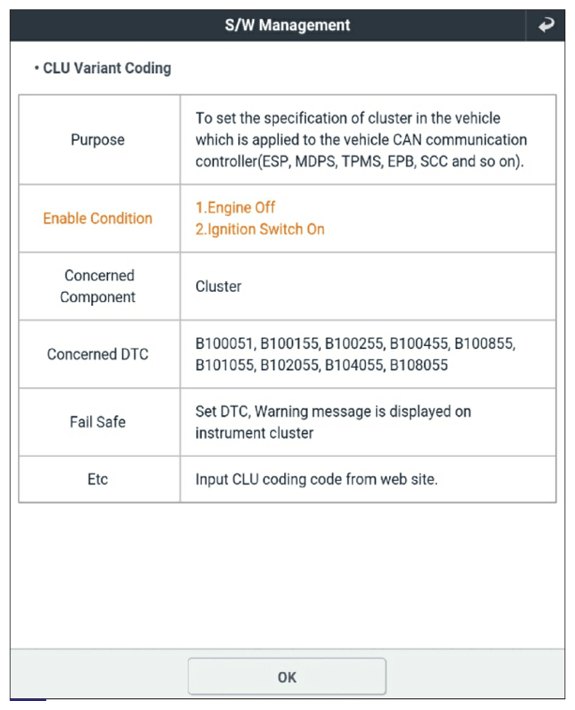

G14959917Courtesy of KIA MOTORS AMERICA, INC.

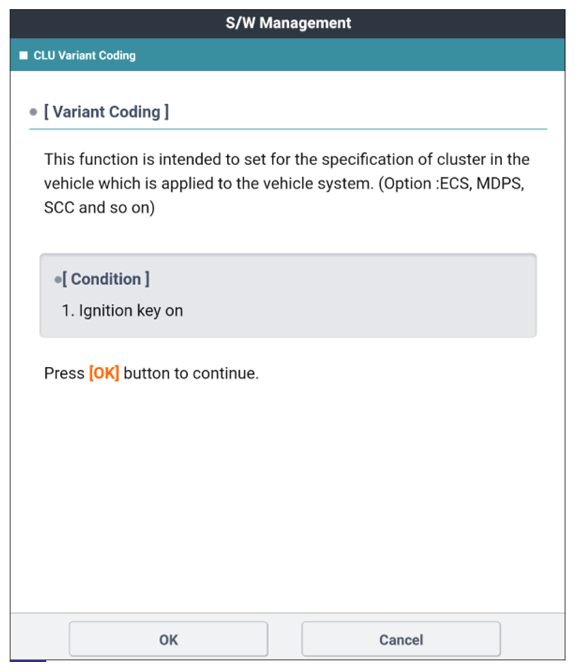

G14959918Courtesy of KIA MOTORS AMERICA, INC.

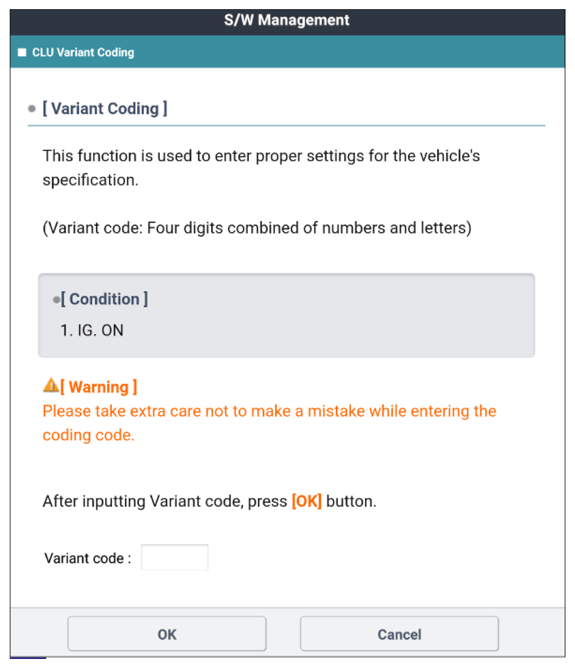

G14959919Courtesy of KIA MOTORS AMERICA, INC.

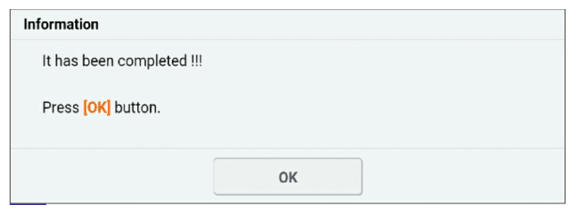

G14959920Courtesy of KIA MOTORS AMERICA, INC.
