Vehicle S/W Management

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 5

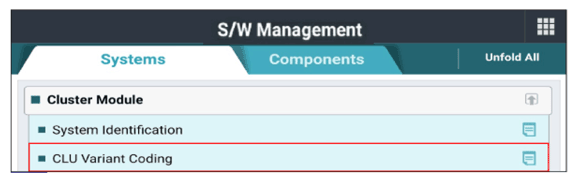

G14959907Courtesy of KIA MOTORS AMERICA, INC.

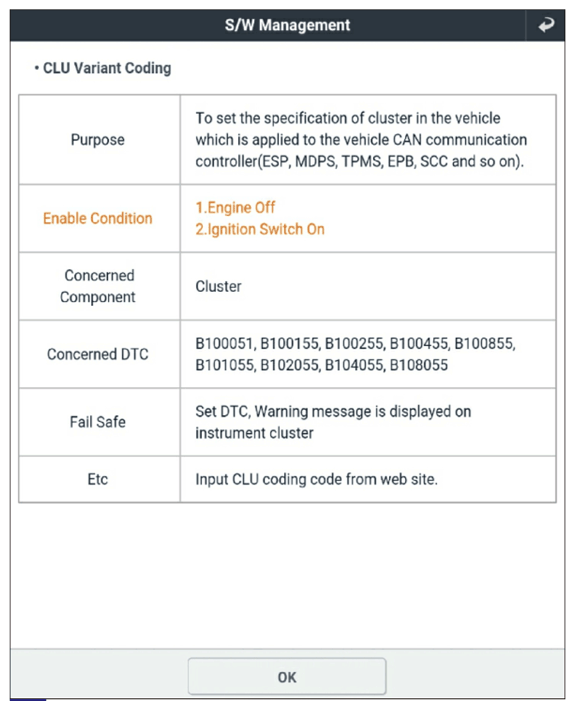

G14959908Courtesy of KIA MOTORS AMERICA, INC.

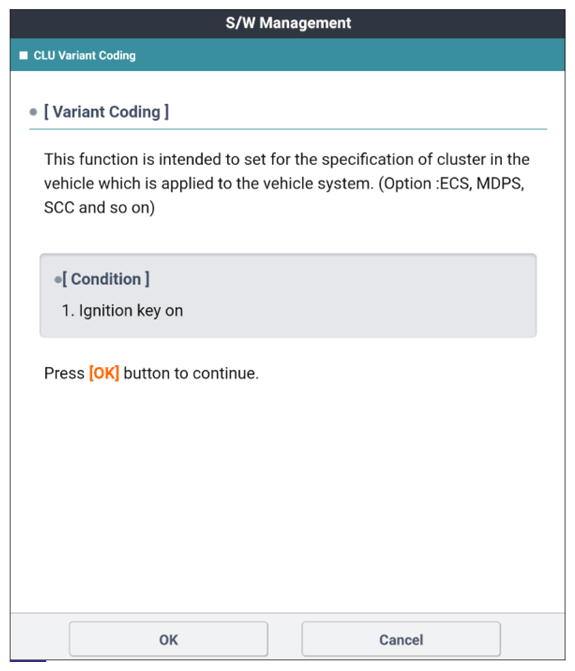

G14959909Courtesy of KIA MOTORS AMERICA, INC.

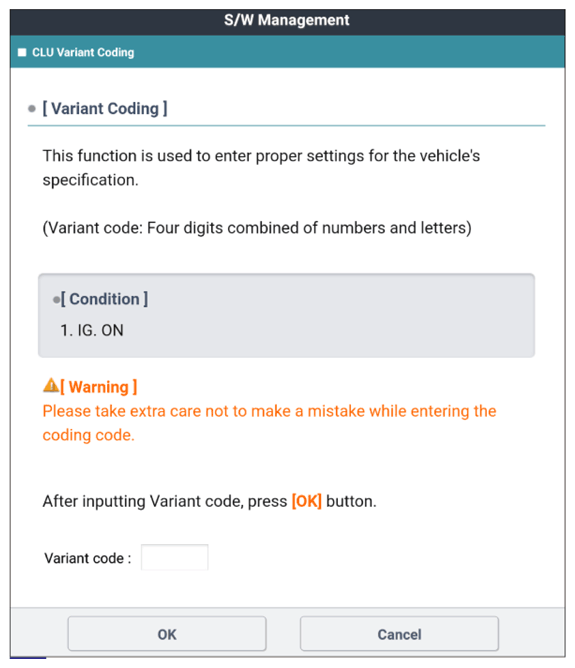

G14959910Courtesy of KIA MOTORS AMERICA, INC.

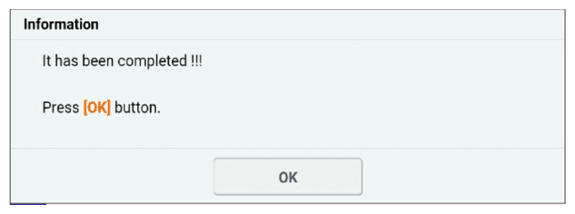

G14959911Courtesy of KIA MOTORS AMERICA, INC.
