Monitor DTC Status
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|
|
|

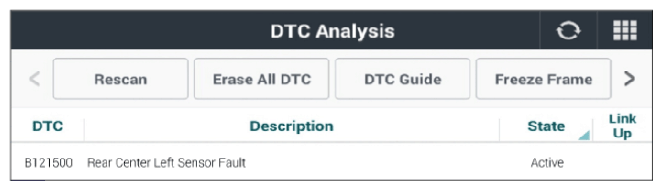

Fig.1 |
Active Fault
- Go to "SYSTEM INSPECTION " procedure.
History/Pending Fault
- Fault is intermittent caused by poor contact in "IBU-BCM" or PDW sensor
- PDW rear center left sensor's connector or was repaired and "IBU-BCM" memory was not cleared.
- Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
- Repair or replace as necessary, go to "Verification Of Repair " procedure.
